Sensor-Output Speed

Component ID: 408
Component : SENSOR-OUTPUT SPEED

Connector:

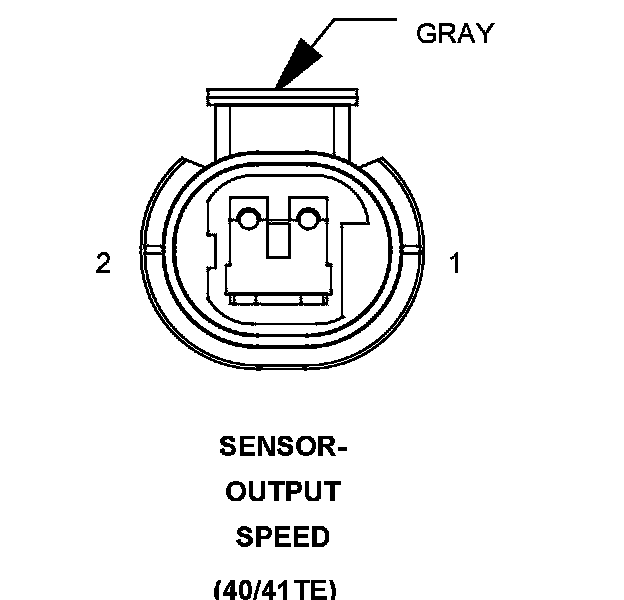

Name : SENSOR-OUTPUT SPEED
Color : GRAY
# of pins : 2
Qualifier : (40/41TE)




Pin Circuit Description
1 T13 20DG/VT SENSOR GROUND
2 T14 20DG/BR OUTPUT SPEED SIGNAL

Component Location - 21




Component Location - 25




Component Location - 29






Connector:

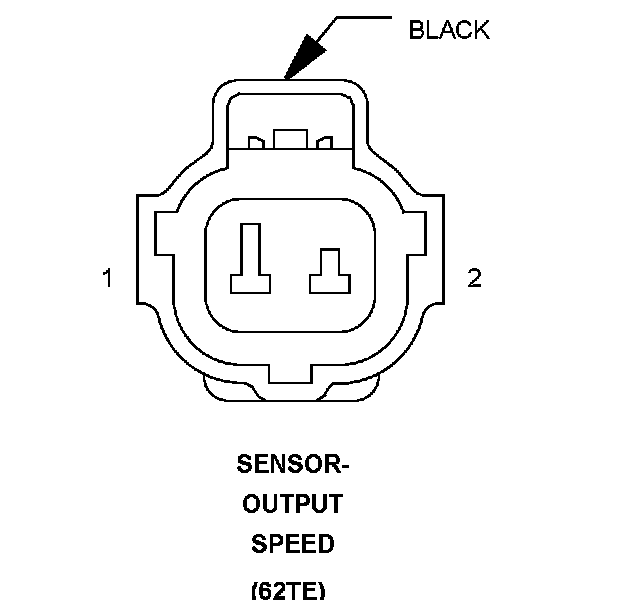

Name : SENSOR-OUTPUT SPEED
Color : BLACK
# of pins : 2
Qualifier : (62TE)




Pin Circuit Description
1 T14 20DG/BR OUTPUT SPEED SIGNAL
2 T13 20DG/VT SENSOR GROUND

Component Location - 21




Component Location - 25




Component Location - 29
