Trunk/Liftgate Sensor/Switch (For Alarm)

Component ID: 460
Component : SWITCH- LUGGAGE PROTECTION

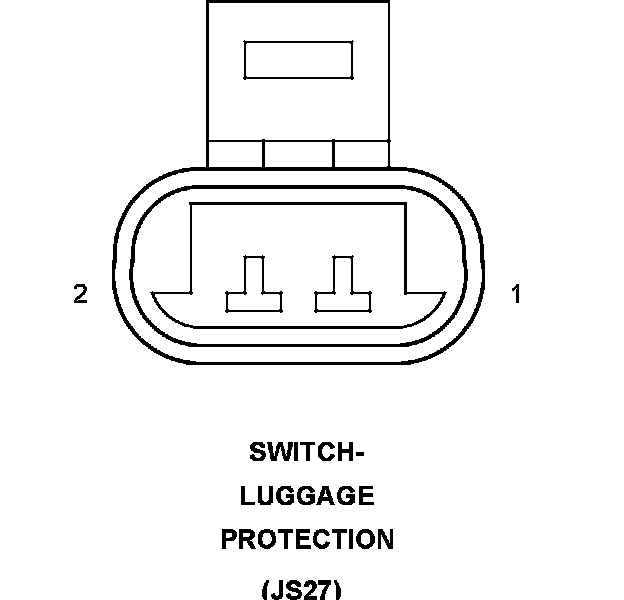

Connector:
Name : SWITCH- LUGGAGE PROTECTION
Color :
# of pins : 3
Qualifier : (JS27)




Pin Circuit Description
1 Q976 22OR LUGGAGE PROTECTION SWITCH SIGNAL
2 Z917 22BK GROUND
3 - -

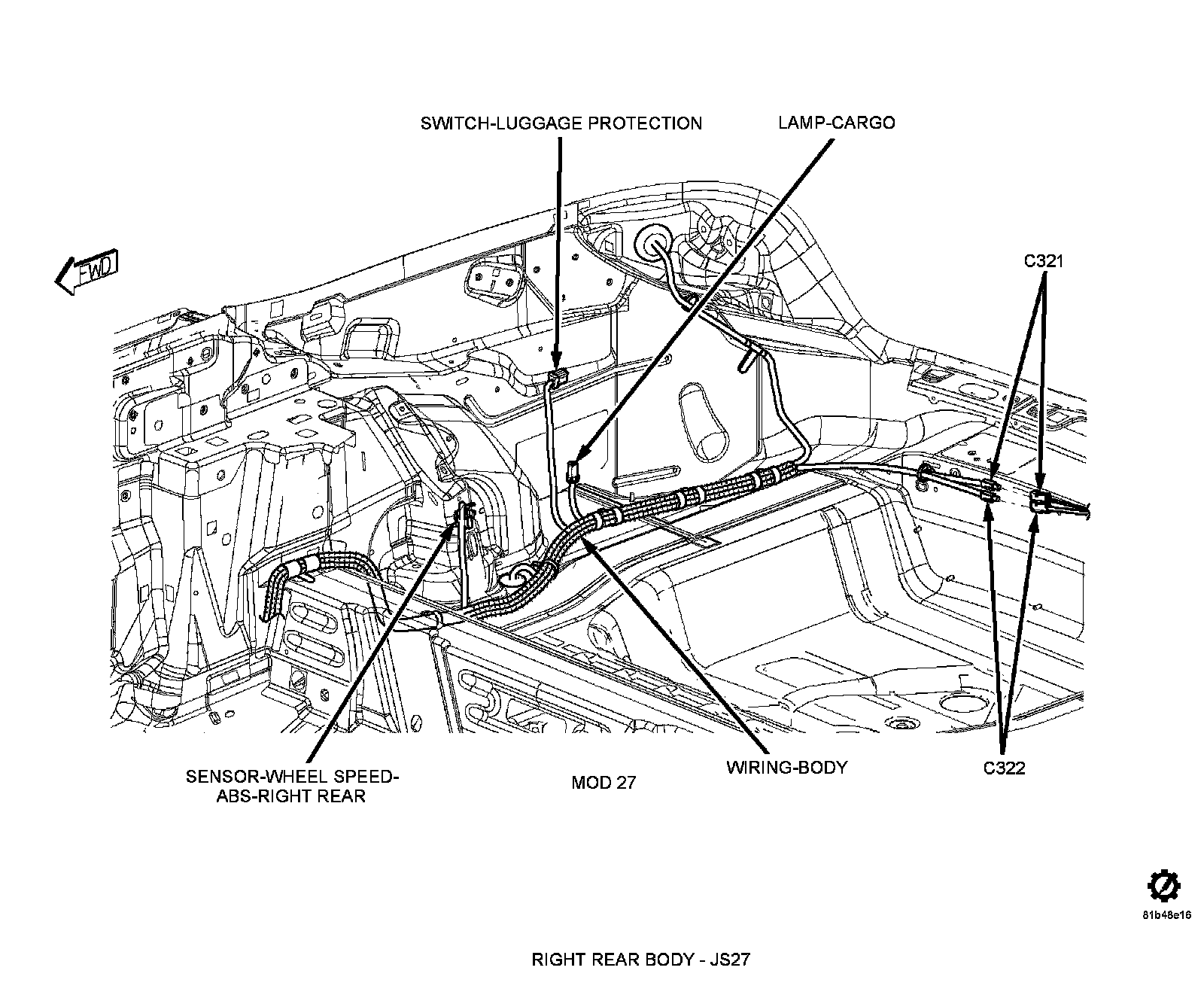

Component Location - 86
