Sensor-Sun

Component ID: 420

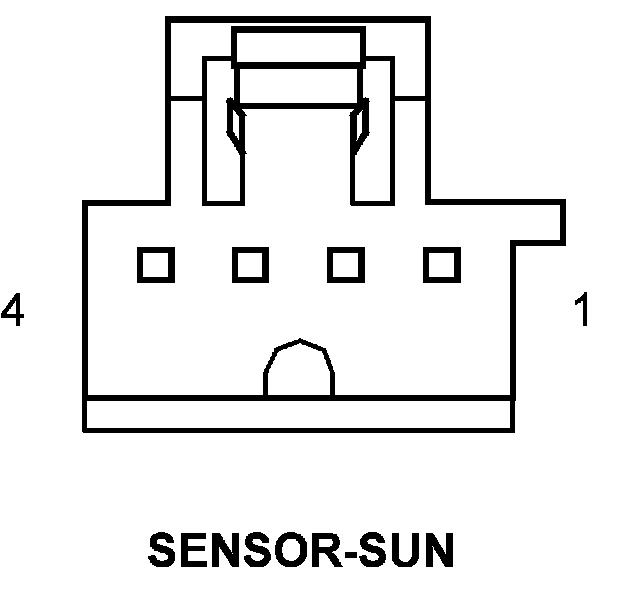

Component : SENSOR-SUN

Connector:
Name : SENSOR-SUN
Color :
# of pins : 4




Pin Circuit Description
1 L24 22WT/VT AUTO HEADLAMPS SIGNAL
2 - -
3 - -
4 G939 22VT/DB SUN SENSOR RETURN

Component Location - 41
