Accelerator Pedal Position Sensor: Locations

Component ID: 380

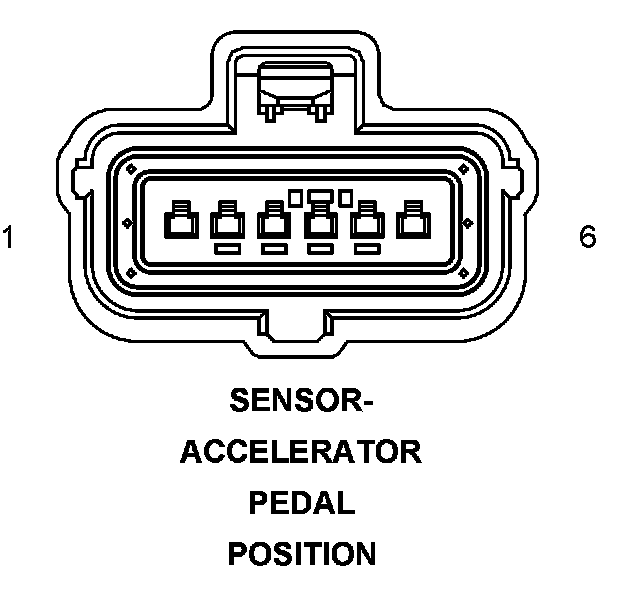

Component : SENSOR-ACCELERATOR PEDAL POSITION

Connector:
Name : SENSOR-ACCELERATOR PEDAL POSITION
Color :
# of pins : 6




Pin Circuit Description
1 K29 20WT/BR APP SIGNAL 2
2 K400 20BR/VT APP SENSOR GROUND 2
3 F856 20YL/PK 5 VOLT SUPPLY
4 K23 20BR/WT APP SIGNAL 1
5 K167 20BR/YL APP SENSOR GROUND 1
6 F855 20PK/YL 5 VOLT SUPPLY

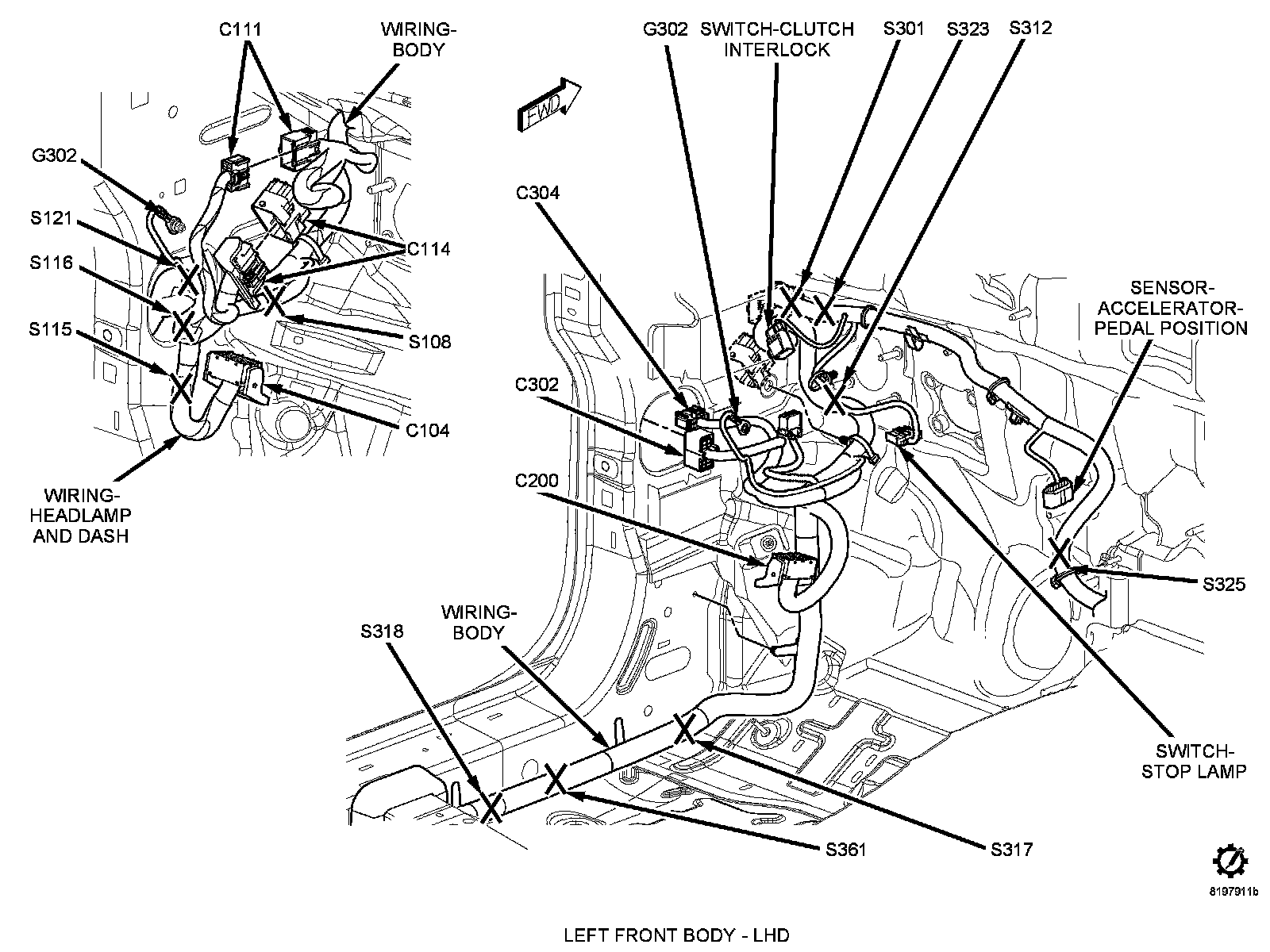

Component Location - 58

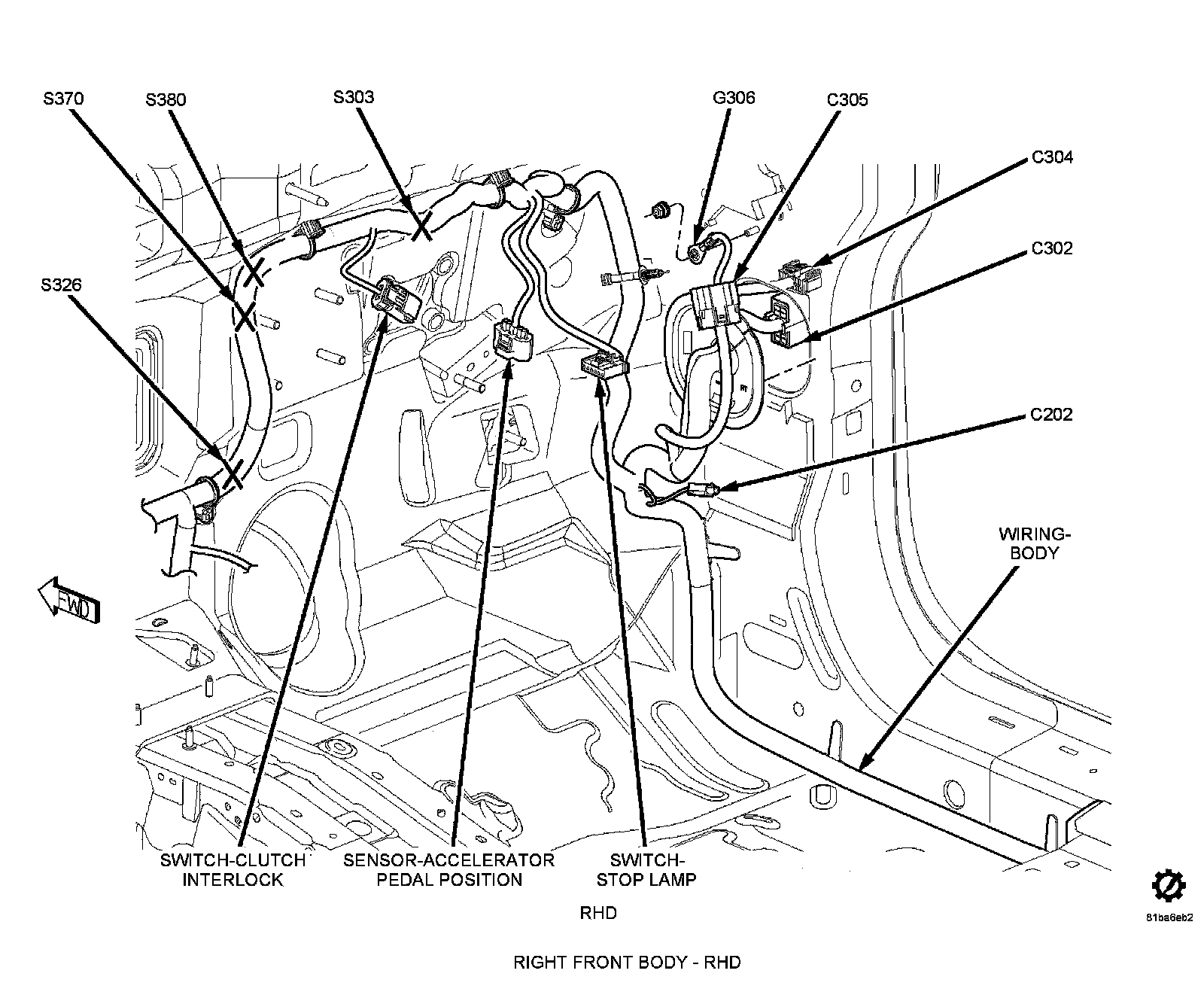

Component Location - 61
