Installation







INSTALLATION

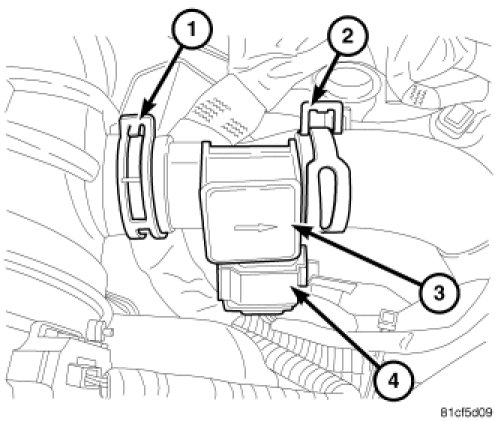

1. Note the arrow direction on the sensor and correctly position the air flow sensor (3) to hoses.
2. Install constant tension clamps (1), (2) to secure air flow sensor (3) to hoses.
3. Connect air flow sensor electrical connector (4).
