Sensor-Camshaft 1/1 Position

Component ID: 384

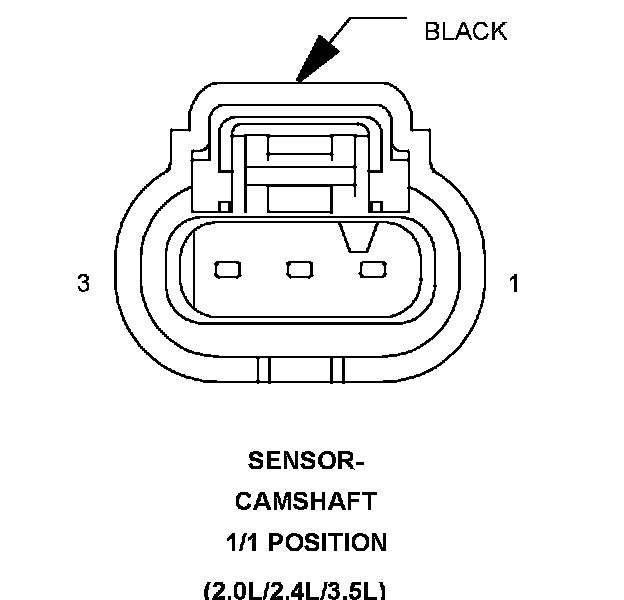

Component : SENSOR-CAMSHAFT 1/1 POSITION

Connector:
Name : SENSOR-CAMSHAFT 1/1 POSITION
Color : BLACK
# of pins : 3
Qualifier : (2.0L/2.4L/3.5L)




Pin Circuit Description
1 F856 20YL/PK 5 VOLT SUPPLY
2 K900 20DB/LB SENSOR GROUND
2 K44 20DB/GY CMP SIGNAL
3 K44 20DB/GY CMP 1/1 SIGNAL
3 K900 20DB/LB SENSOR GROUND

Component Location - 30
