Sensor-Engine Coolant Temperature

Component ID: 391
Component : SENSOR-ENGINE COOLANT TEMPERATURE

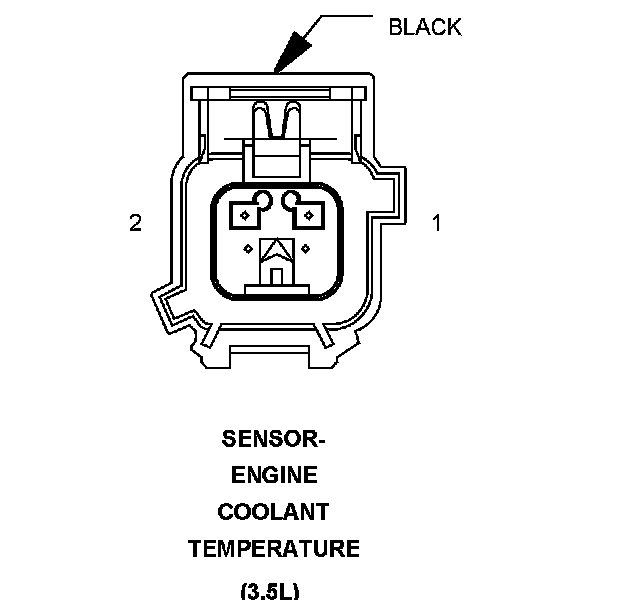

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color : BLACK
# of pins : 2
Qualifier : (3.5L)




Pin Circuit Description
1 K900 20DB/LB SENSOR GROUND
2 K2 20VT/OR ECT SIGNAL

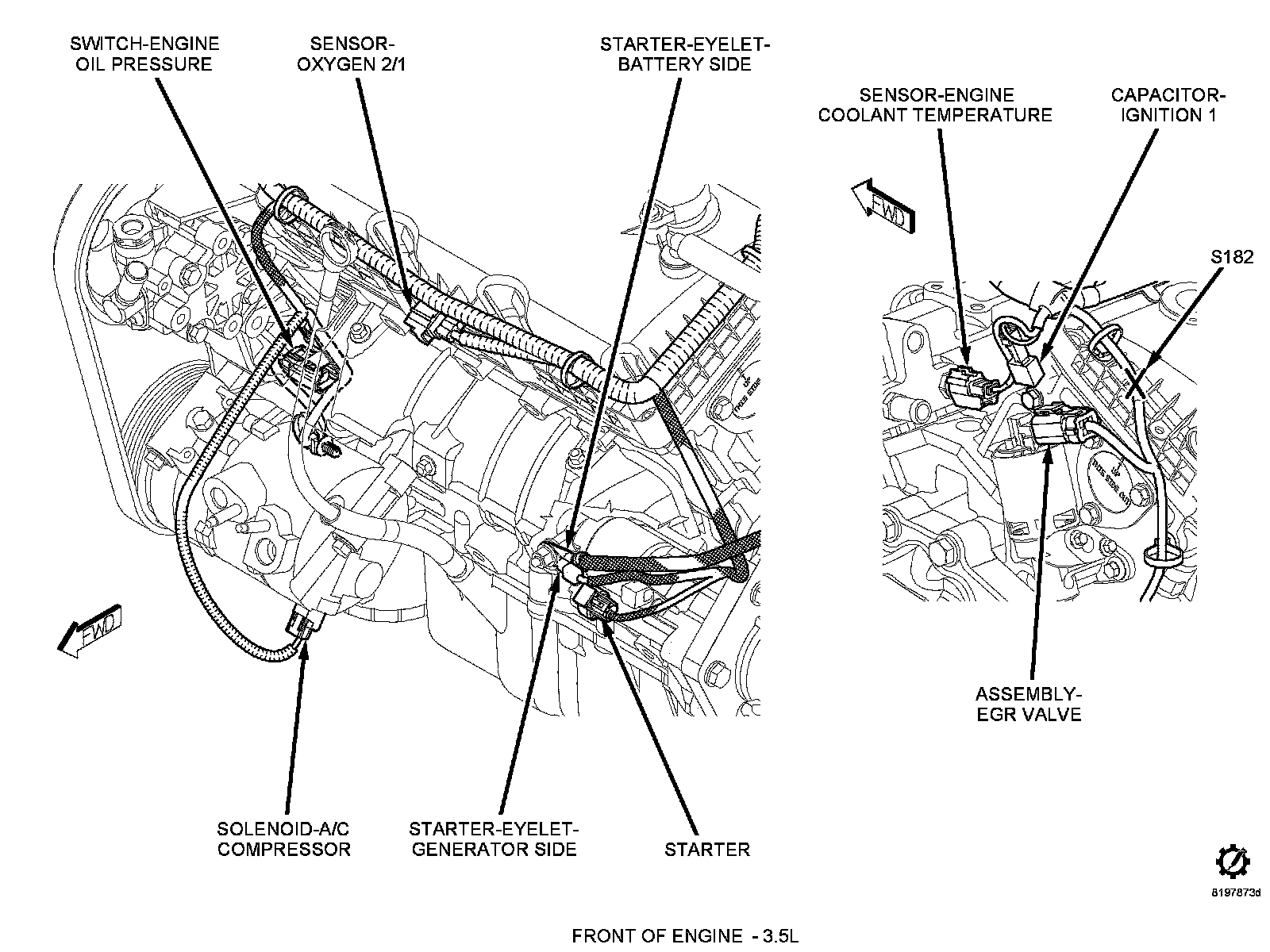

Component Location - 22




Component Location - 26




Component Location - 27




Component Location - 33

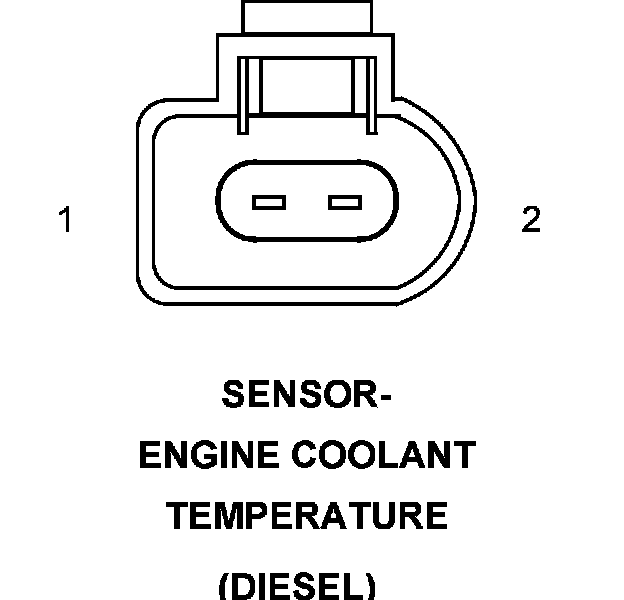

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color :
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 K2 20VT/OR ECT SIGNAL
2 K915 20BR/WT SENSOR GROUND

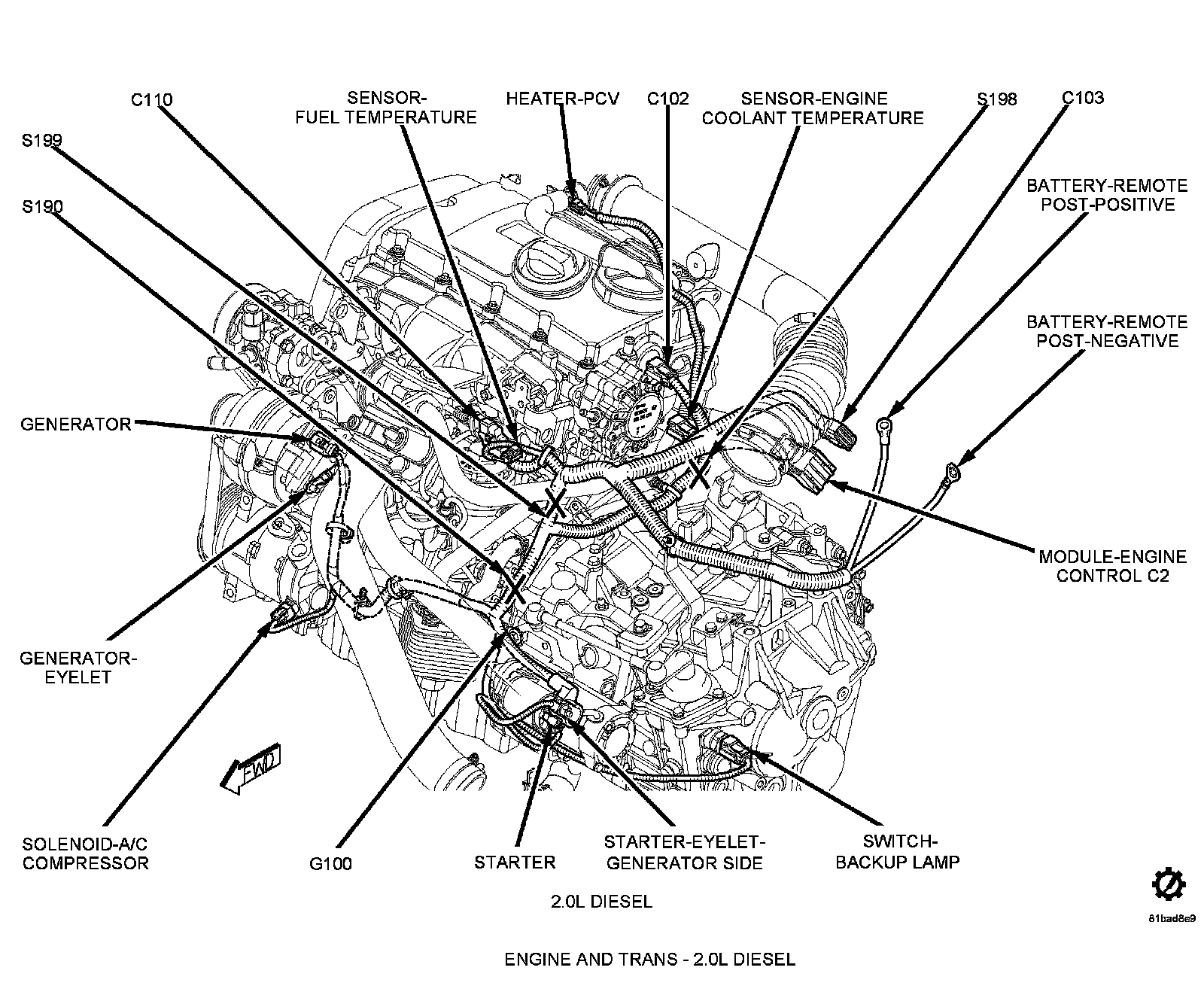

Component Location - 22




Component Location - 26




Component Location - 27




Component Location - 33
