Sensor-Engine Coolant Temperature 2

Component ID: 393

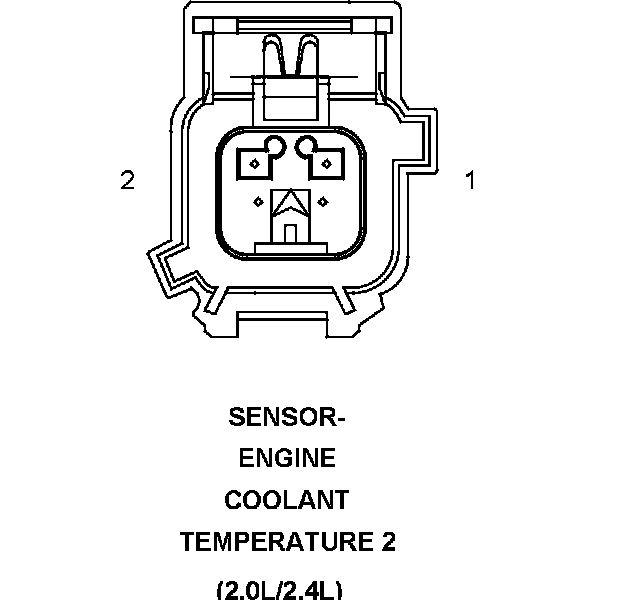

Component : SENSOR-ENGINE COOLANT TEMPERATURE 2

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE 2
Color :
# of pins : 2
Qualifier : (2.0L/2.4L)




Pin Circuit Description
1 K915 20BR/PK SENSOR GROUND
2 K222 20BR/BK ECT 2 SIGNAL

Component Location - 31
