Installation

INSTALLATION

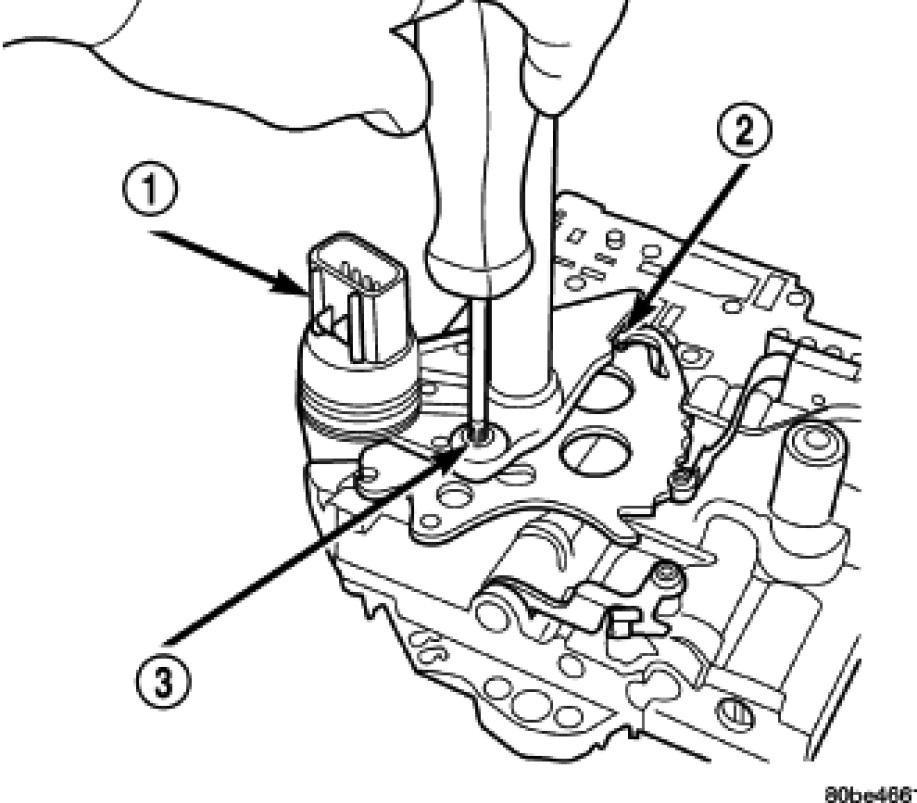

1. Install Transmission Range Sensor (TRS) (1) to the valve body and torque retaining screw (3) to 5 Nm (45 in. lbs.).
2. Install valve body to transaxle. Removal and Replacement.
