Intake Manifold

INTAKE MANIFOLD





Intake Manifold Bolts 25 Nm (220 In.Lbs.)

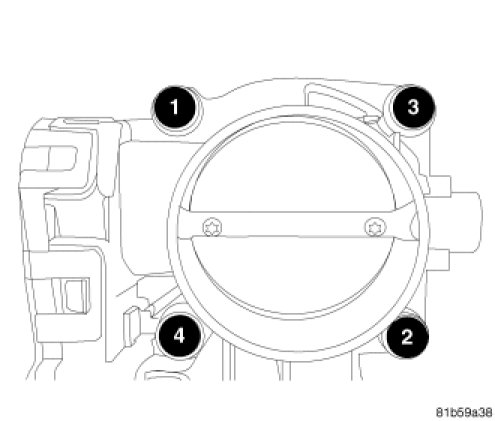

THROTTLE BODY





CAUTION: The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.

Tighten the bolts in a mandatory torque criss - cross pattern sequence to 7.5 Nm (65 in. lbs.)
