Clock

Component ID: 207

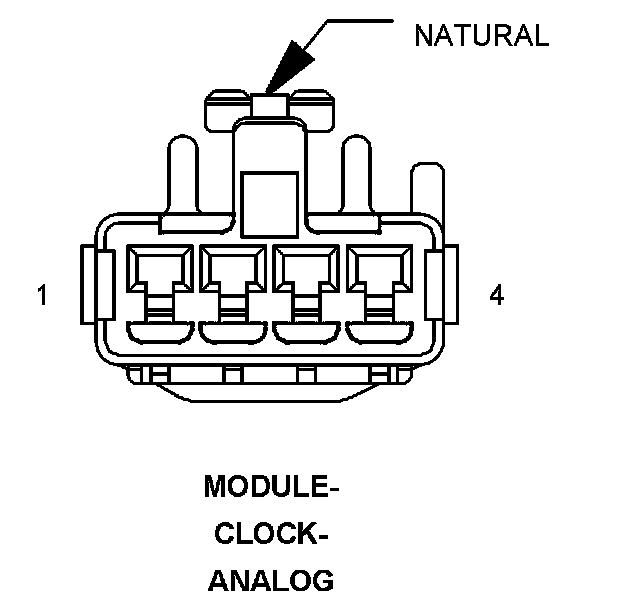

Component : MODULE-CLOCK-ANALOG

Connector:
Name : MODULE-CLOCK-ANALOG
Color : NATURAL
# of pins : 4




Pin Circuit Description
1 A411 20RD FUSED B(+) (I.O.D.)
2 Z910 22BK/LG GROUND
3 E12 20OR/GY PANEL LAMPS DRIVER
4 - -

Component Location - 39




Component Location - 44




Component Location - 42
