Map Light

Component ID: 172
Component : LAMP-MAP

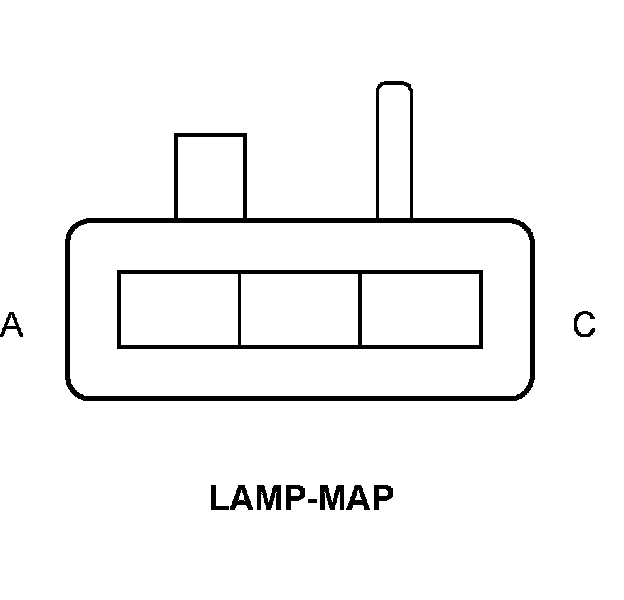

Connector:
Name : LAMP-MAP
Color :
# of pins : 3




A M27 20YL/DB READING/RAIL LAMPS DRIVER
B Z907 20BK GROUND
C M24 20YL/WT COURTESY LAMPS DRIVER

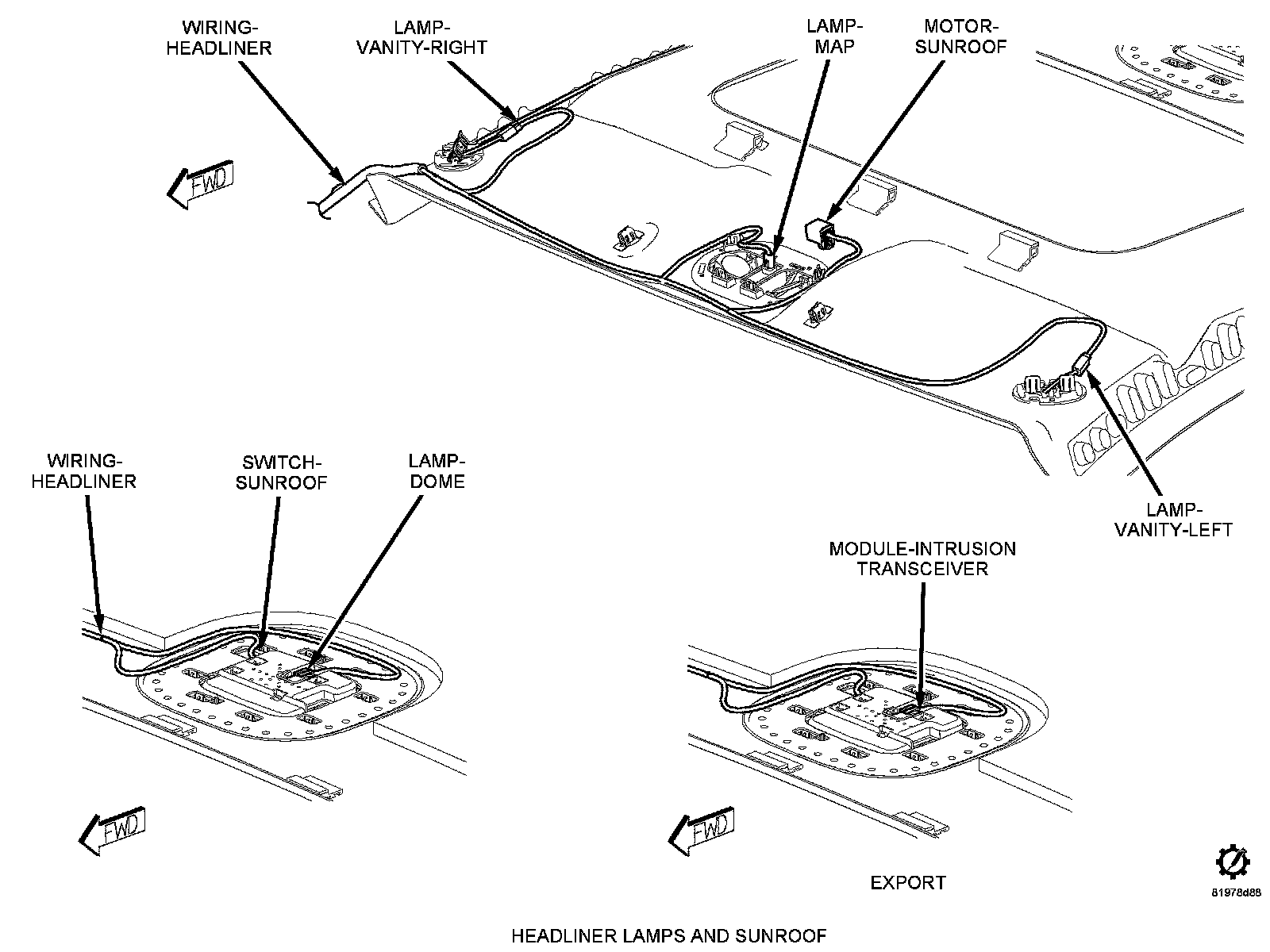

Component Location - 53
