Trunk / Liftgate Switch

Component ID: 446

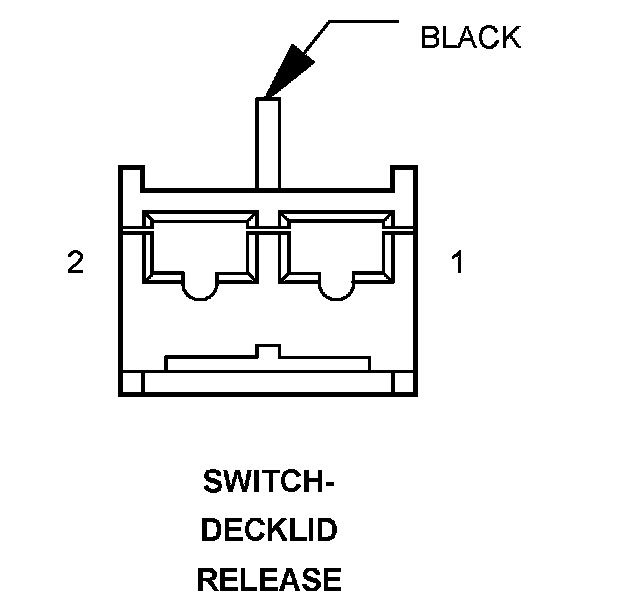

Component : SWITCH-DECKLID RELEASE

Connector:
Name : SWITCH-DECKLID RELEASE
Color : BLACK
# of pins : 2




Pin Circuit Description
1 Z910 22BK GROUND
2 P223 22LG/WT DECKLID RELEASE SWITCH SENSE

Component Location - 39




Component Location - 41




Component Location - 44




Component Location - 37




Component Location - 42
