Intake Manifold

INTAKE MANIFOLD

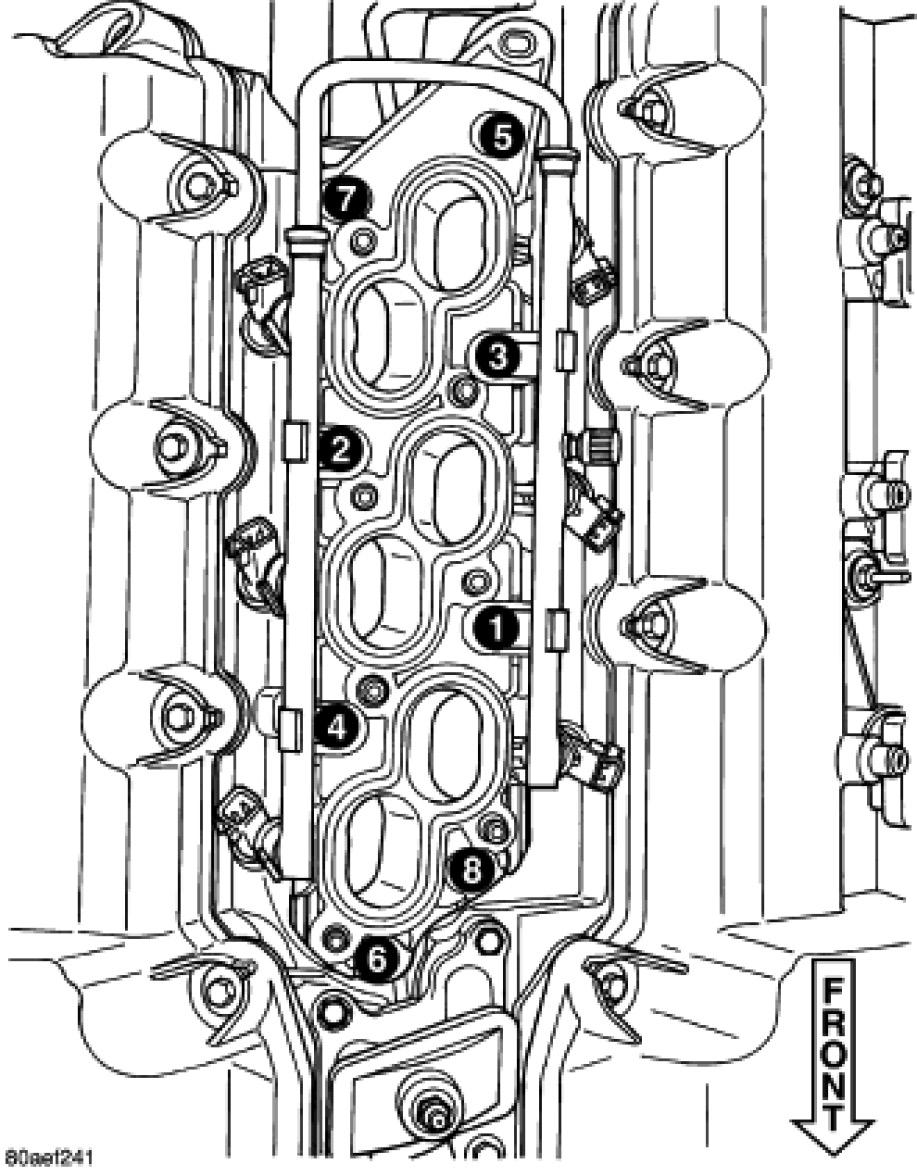

Lower Intake Manifold





- Tighten in sequence shown, to 12 Nm (105 in. lbs.)

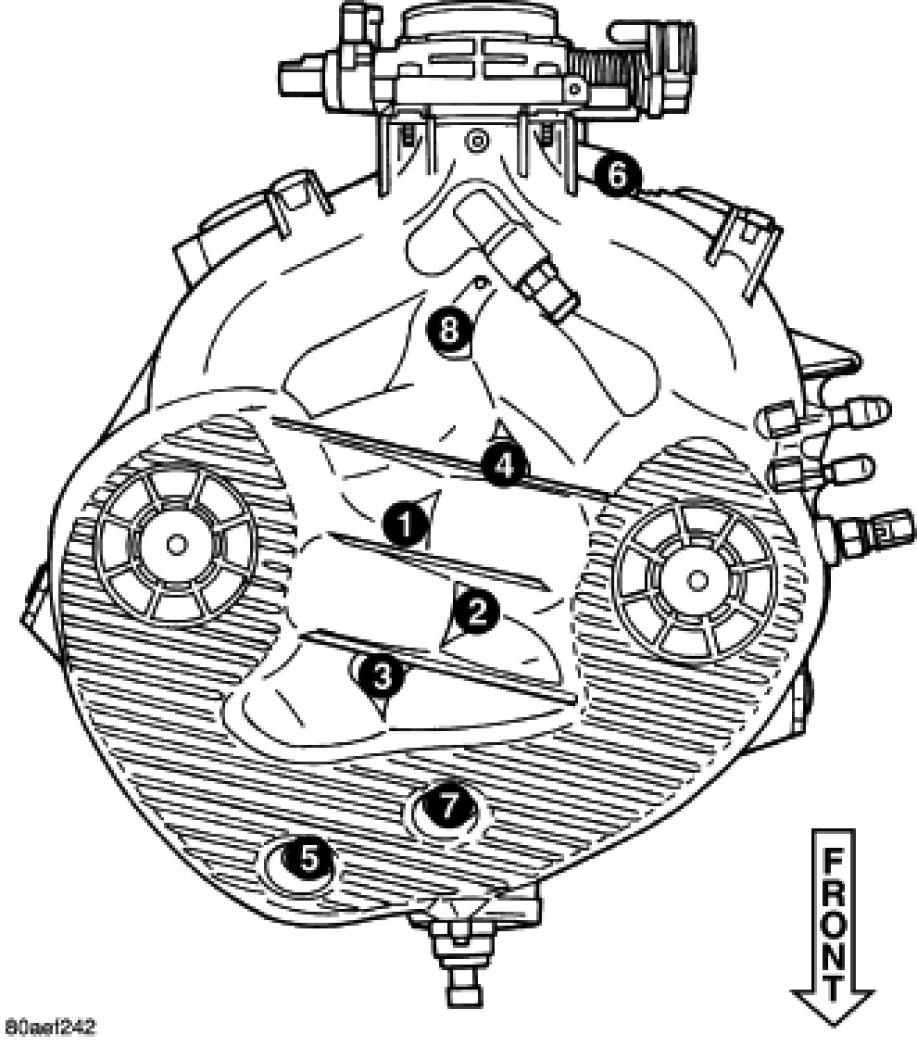

Upper Intake Manifold





- Tighten in sequence shown, to 12 Nm (105 in. lbs.)

THROTTLE BODY





CAUTION: The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.

Tighten the three bolts (1), (2), (4) and one stud (3) in a mandatory torque criss - cross pattern sequence to 5.5 Nm (50 in. lbs.)
