Installation







INSTALLATION

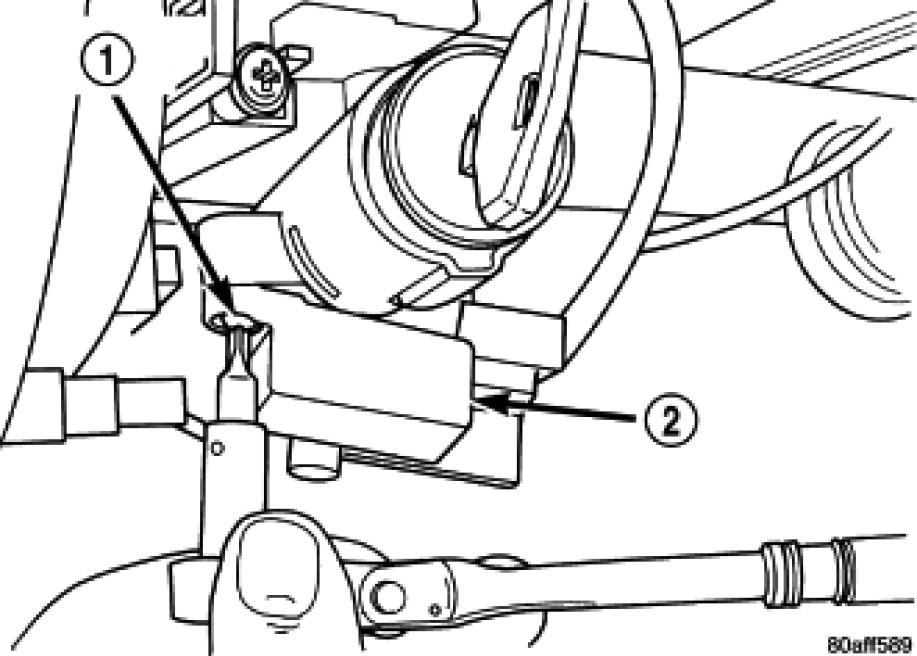

1. Position the interlock housing at steering column. Install the interlock mechanism to steering column attaching screws (1). Tighten screws to 3 Nm (21 in. lbs.).
2. Snap the interlock cable into the housing.
3. Install the lower column covers, shrouds and knee bolster.
