Installation

INSTALLATION

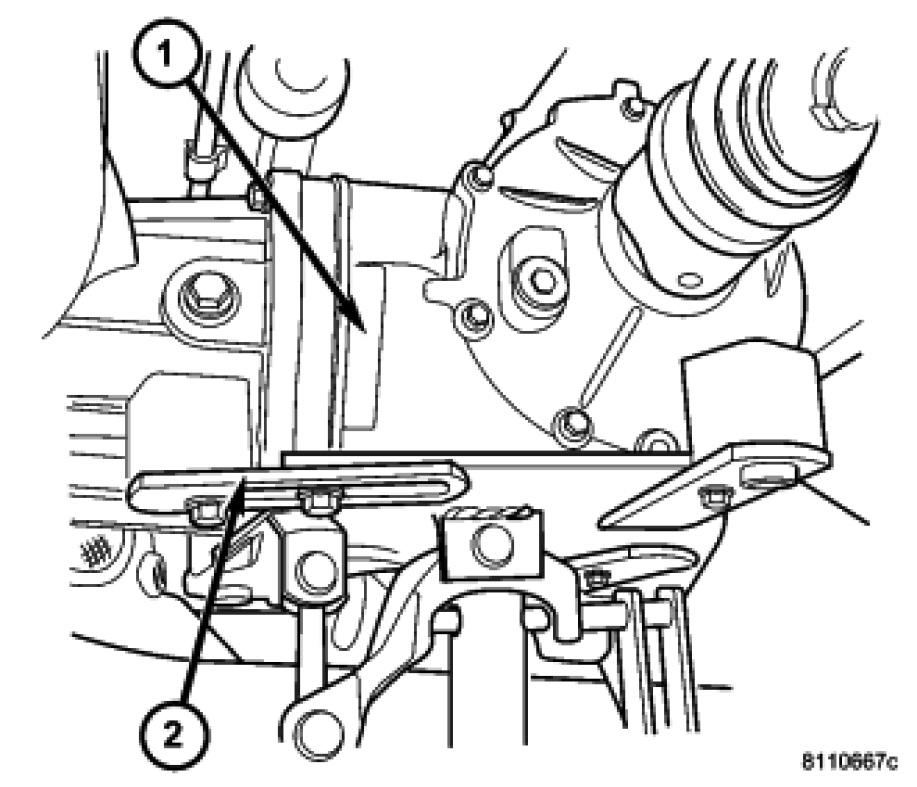

1. Install driveline module to transmission jack. Secure module to jack.

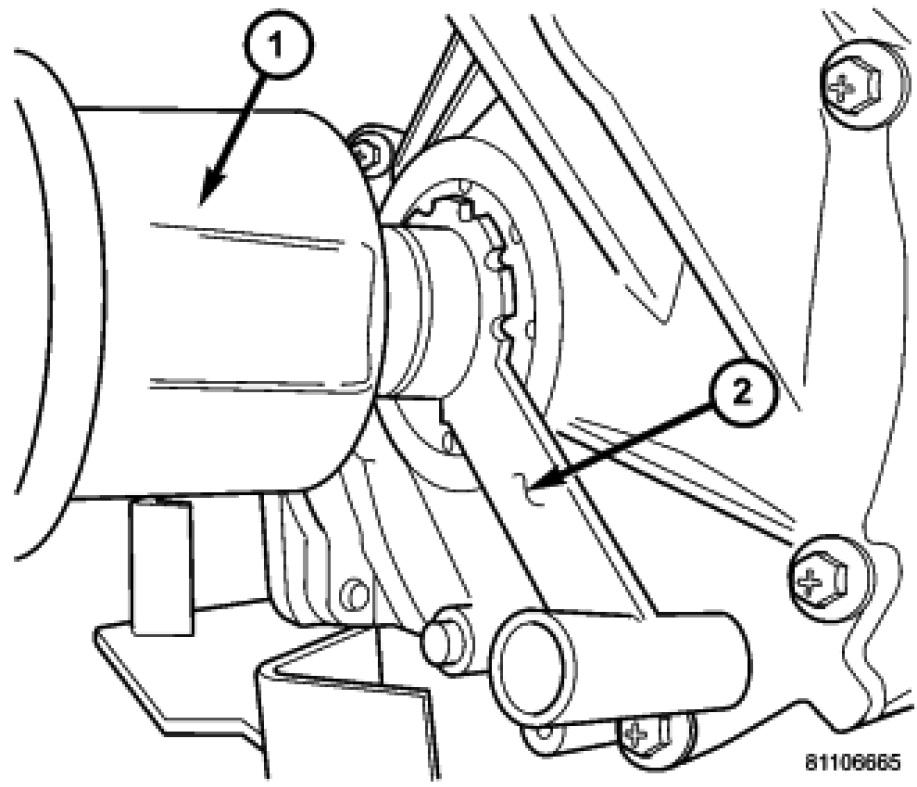

2. Using Seal Protector 9099 (2), load halfshafts to differential, one side at a time. Clean tool and seal area to prevent debris intrusion.




3. Index and install propeller shaft to driveline module flange. Install, but do not tighten, the propeller shaft-to-driveline module bolts.
4. Raise driveline module (1) into position.

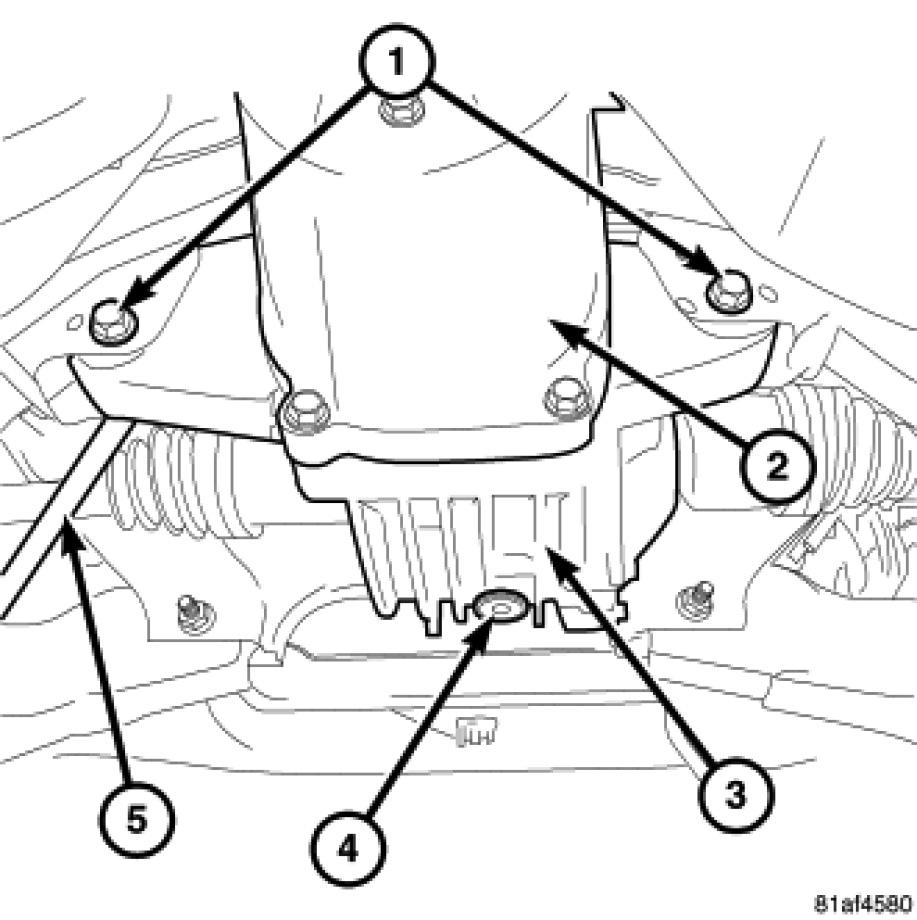

5. Install the RDA - to - crossmember mounting bolts (1) and tighten to 102 Nm (75 ft. lbs.).

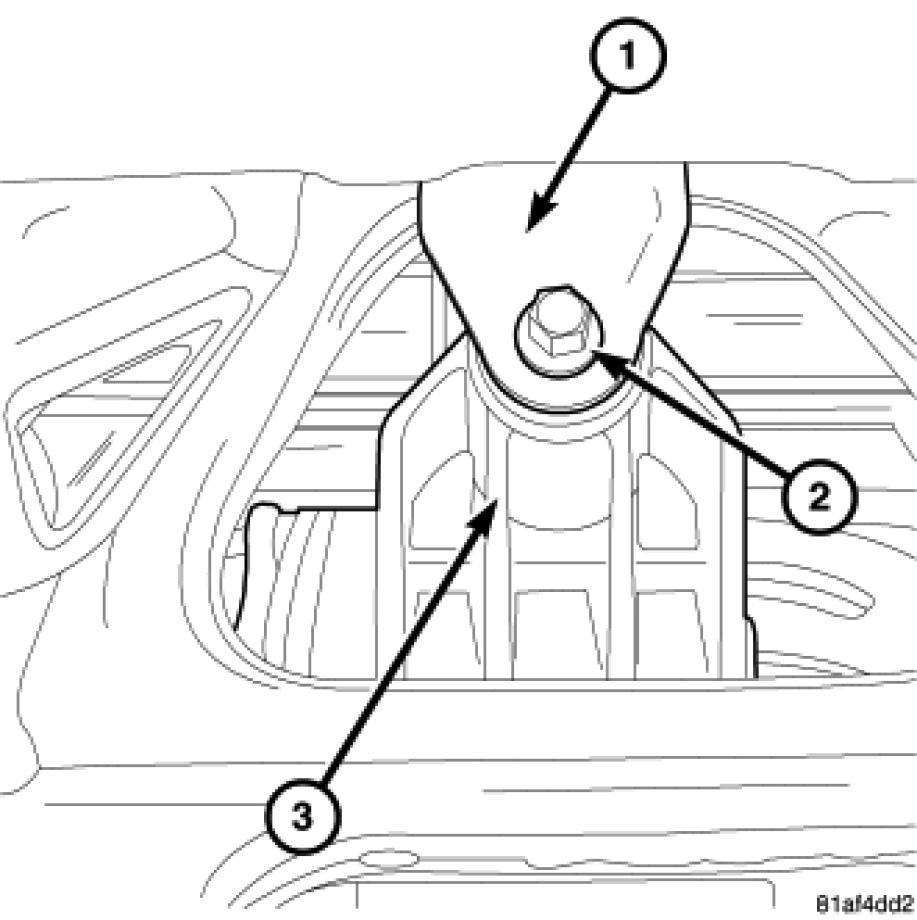

6. Install the rear RDA - to - crossmember mounting bolt (2) to 102 Nm (75 ft. lbs.)
7. Tighten propeller shaft-to-driveline module bolts to 54 Nm (40 ft.lbs.).
8. Raise exhaust system into position and install hanger/brackets.
9. Fill differential with 0.7L (0.74 Quarts) of Mopar(R) Gear and Axle Lubricant (75W-90). Procedures
