Installation

3.5L





CAUTION: Always use the specified torque when installing the knock sensor bolt. Over or under tightening the sensor mounting bolt will affect knock sensor performance, possibly causing improper spark control.

1. Install knock sensor. Tighten knock sensor to 20 Nm (15 ft. lbs.).

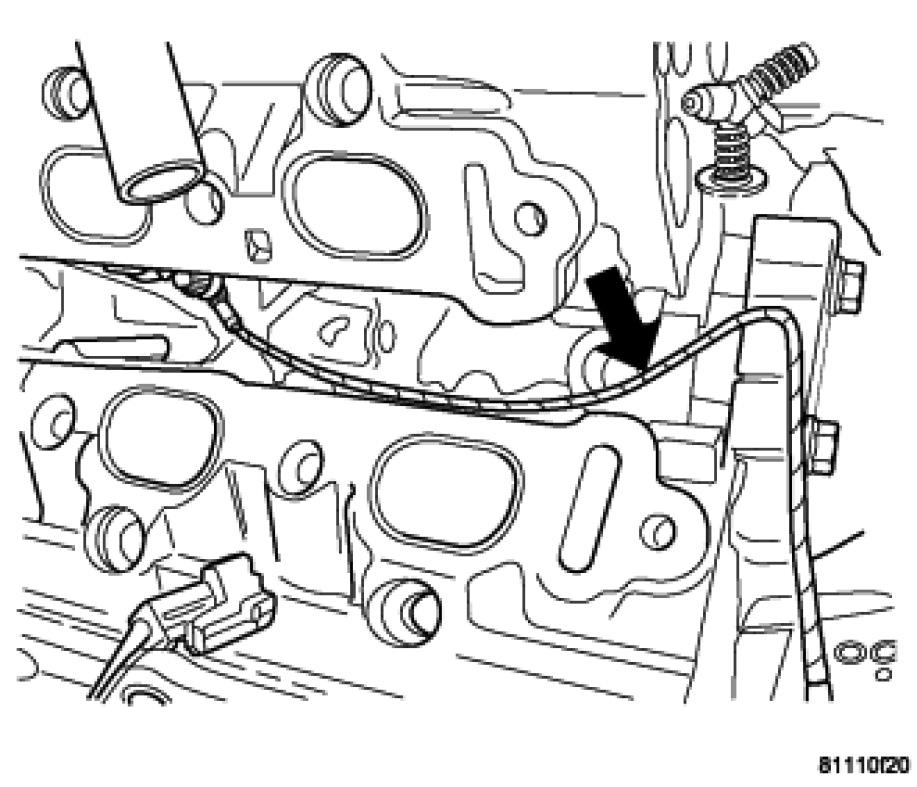

2. Route the knock sensor wire in the proper location.
3. Install the upper intake manifold, Intake Manifold - Installation.

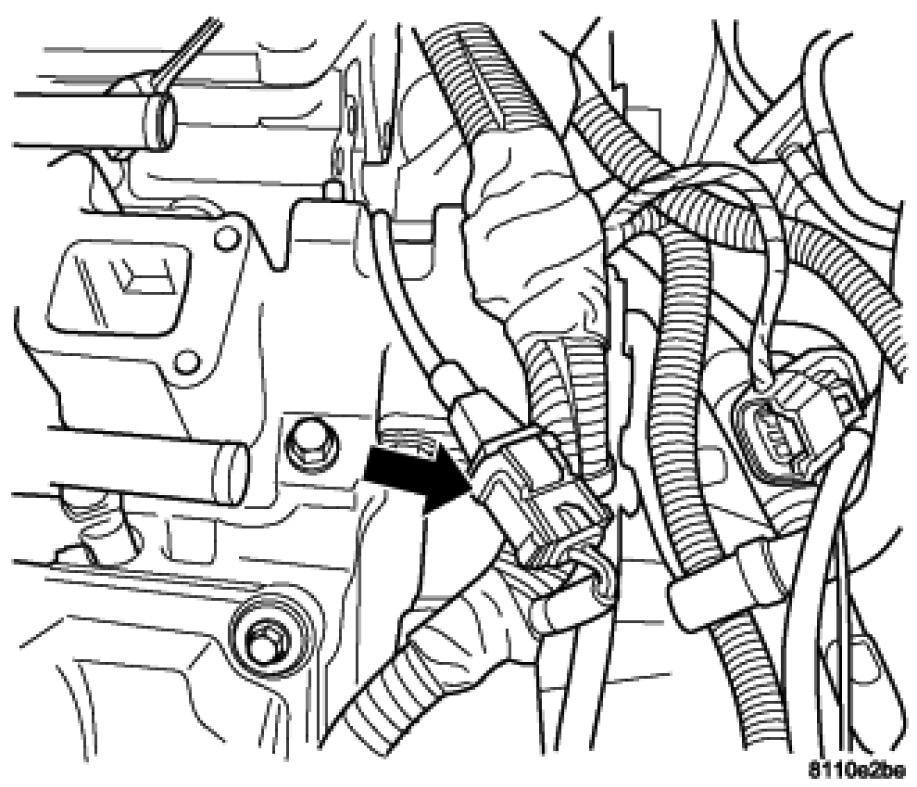

4. Connect the electrical connector.
5. Connect the negative battery cable.
