Spark Plug: Installation: 3.5L
CAUTION:
Handle the spark plugs with care. Do not drop or force the spark plugs into the wells, damage to the electrodes and/or porcelain body may occur. Always start each spark plug by hand in order to avoid cross-threading the spark plug in the cylinder head.
Always tighten spark plugs to the specified torque. Too much or not enough torque will cause damage to the cylinder head and/or spark plug and may lead to poor engine performance.
Always tighten spark plugs to the specified torque. Too much or not enough torque will cause damage to the cylinder head and/or spark plug and may lead to poor engine performance.
- To avoid cross threading, start the spark plug into the cylinder head by hand.
- Tighten spark plugs to 27 N.m (20 ft. lbs.).
- Install ignition coil.

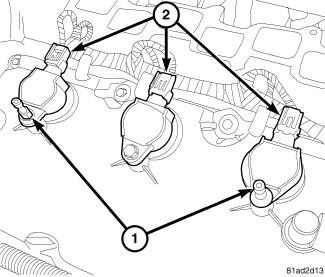

- Install engine cover studs (1) in the two outside ignition coils on the front of the engine. Install bolts on the other ignition coils.
- Tighten studs and bolts to 8 N.m (71 in. lbs.).
- Connect electrical connector and lock (2).
- Install intake manifold. Refer to INSTALLATION .
- Reconnect the negative battery cable.
- Install the engine cover.
