VALVE, Exhaust Gas Recirculation (EGR): Installation: 2.7L

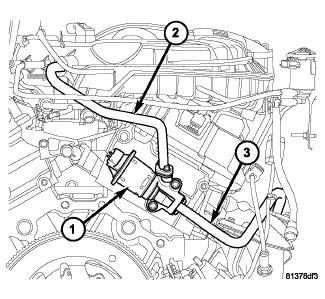

Fig 1: EGR SYSTEM

Courtesy of CHRYSLER LLC

1. Clean mounting surface.

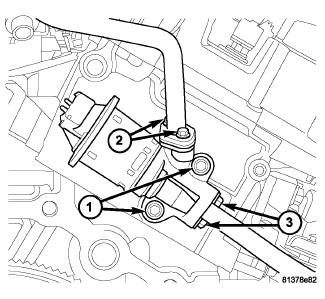

   Fig 2: EGR VALVE

   Courtesy of CHRYSLER LLC
2. Install EGR valve.
3. Install the EGR valve mounting bolts (1).
4. Inspect rubber silicone seals on intake manifold end of EGR tube.
5. Install upper tube into the intake manifold, being careful that the silicone rubber seals are correctly installed and undamaged.
6. Install new gasket between the EGR valve and upper tube and install bolts (2).
7. Install the lower tube to exhaust manifold.
8. Install new gasket between the EGR valve and lower tube and install bolts (3).
9. Tighten the lower tube to EGR valve bolts (3) to 15 N.m (11 ft. lbs.).
10. Tighten the lower tube to exhaust manifold bolts to 31 N.m (23 ft. lbs.).
11. Tighten the upper tube to EGR valve bolts (2) to 15 N.m (11 ft. lbs.).
12. Tighten EGR valve to cylinder head bolts (1) to 30 N.m (22 ft. lbs.).

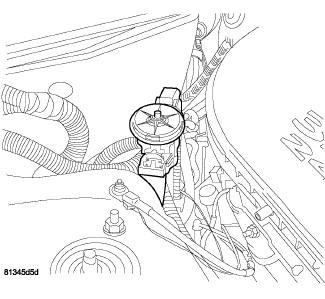

    Fig 3: PURGE SOLENOID BRACKET

    Courtesy of CHRYSLER LLC
13. Connect the electrical connector to EGR valve and lock.
14. Relocate the purge solenoid.

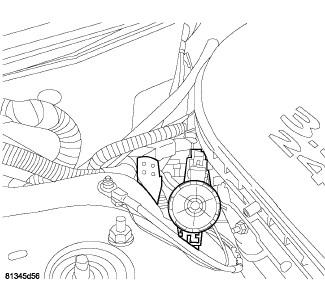

    Fig 4: PURGE SOLENOID INSTALLED

    Courtesy of CHRYSLER LLC
15. Install purge solenoid to bracket.
16. Connect negative battery cable.
17. Using a diagnostic scan tool, erase any previously recorded DTC's (Diagnostic Trouble Codes).
