VALVE, Exhaust Gas Recirculation (EGR): Installation: 5.7L

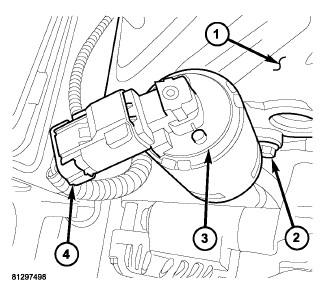

Fig 1: EGR VALVE LOCATION

Courtesy of CHRYSLER LLC

1. Position a new metal gasket between cylinder head (1) and valve assembly (3).
2. Install two mounting bolts (2) and tighten. Refer to TORQUE  Specifications.

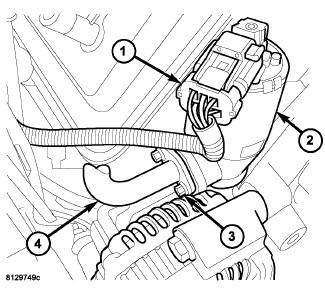

   Fig 2: EGR TUBE BOLTS

   Courtesy of CHRYSLER LLC
3. Clean EGR tube where it joins EGR valve.
4. Position new gasket between EGR tube flange and EGR valve assembly.
5. Install two bolts (3) connecting EGR tube (4) to valve assembly (2). Tighten bolts. Refer to TORQUE  Specifications.
6. Connect electrical connector (1) to EGR solenoid (2).
7. Connect negative battery cable.
8. Using a diagnostic scan tool, erase any previously recorded DTC's (Diagnostic Trouble Codes).
