Compressor Clutch






Connector (GAS) - (ENGINE) 2 WAY

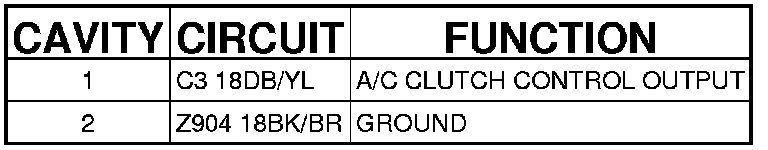

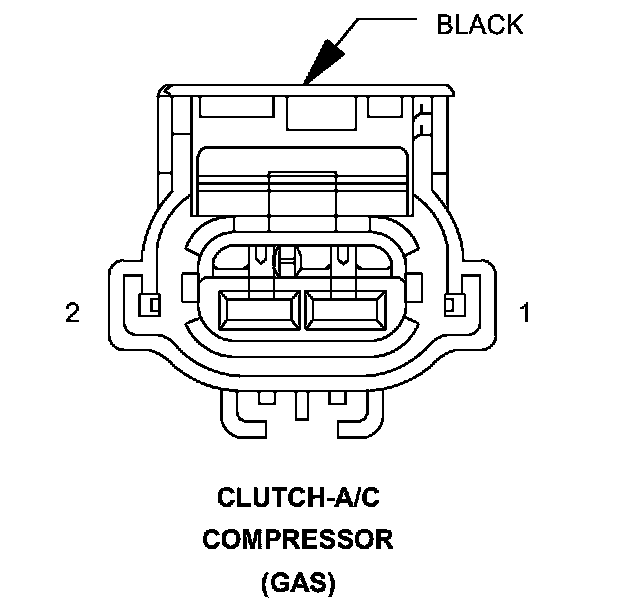

CLUTCH-A/C COMPRESSOR (GAS) - (ENGINE) 2 WAY
