Cruise Control Module

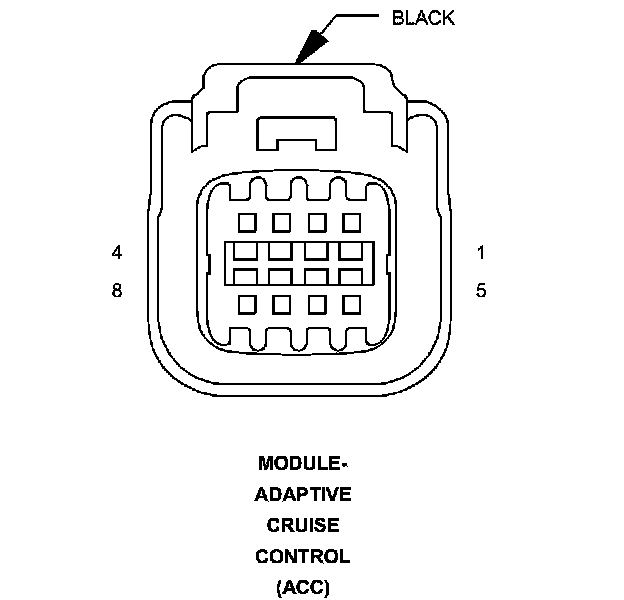

Connector (ACC) - (HEADLAMP AND DASH) 8 WAY

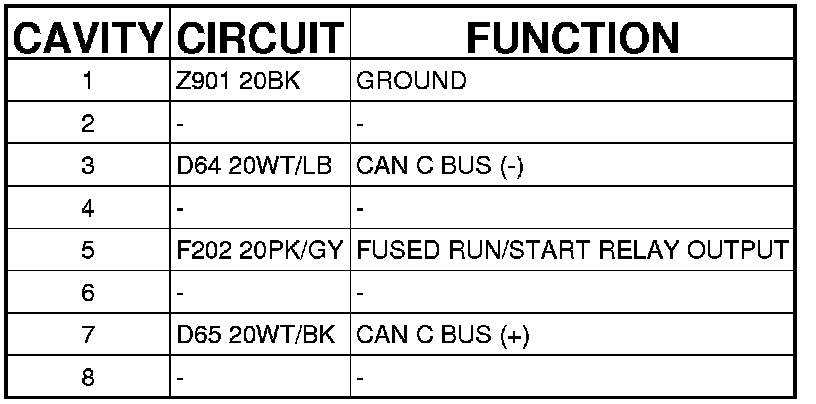

MODULE-ADAPTIVE CRUISE CONTROL (ACC) - (HEADLAMP AND DASH) 8 WAY
