Satellite Video Module C2 (Audio/Video Jumper) 2 Way

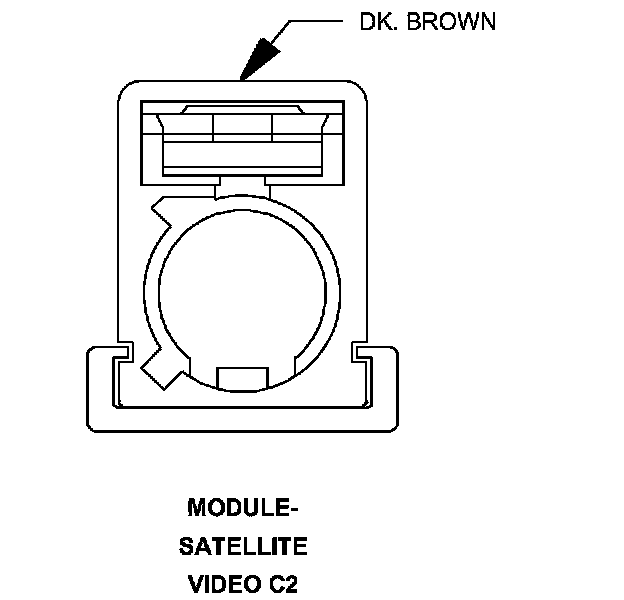

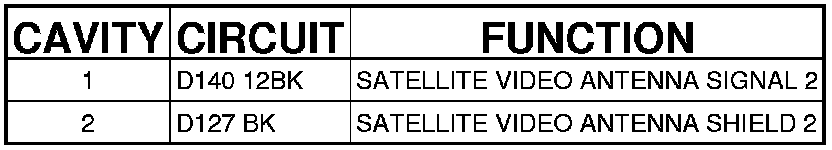

Connector C2 - (AUDIO/VIDEO JUMPER) 2 WAY
MODULE-SATELLITE VIDEO - (AUDIO/VIDEO JUMPER) 2 WAY
