Steering Control Module (Component Side) (Steering Wheel) 9 Way

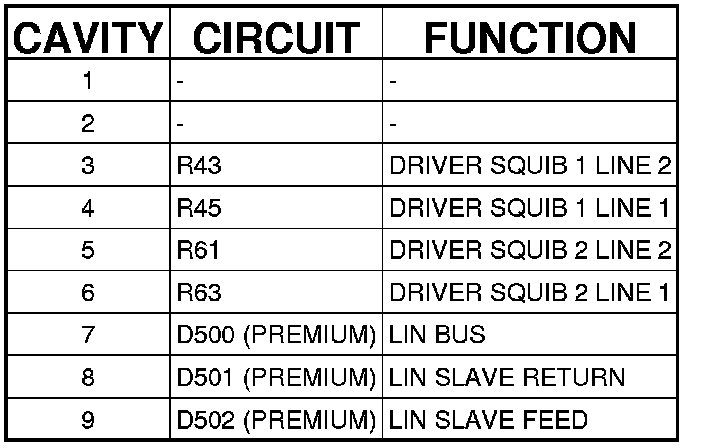

Connector (COMPONENT SIDE) - (STEERING WHEEL) 9 WAY

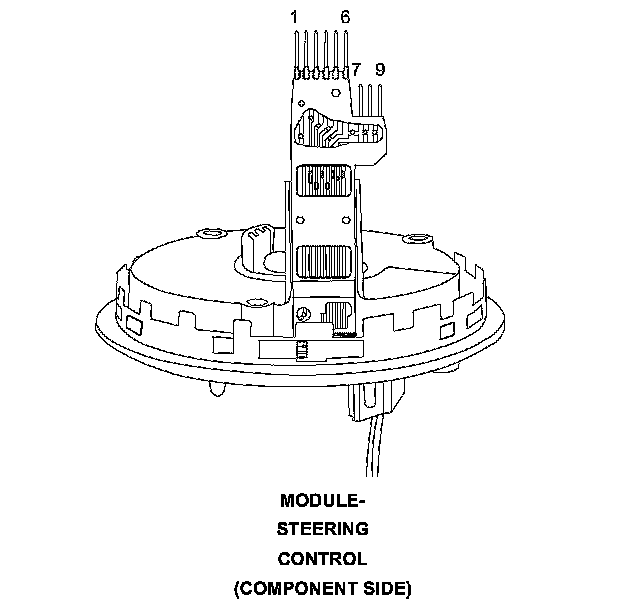

MODULE-STEERING CONTROL (COMPONENT SIDE) - (STEERING WHEEL) 9 WAY
