Totally Integrated Power Module (TIPM) - Removal

REMOVAL






NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Battery Reconnection .

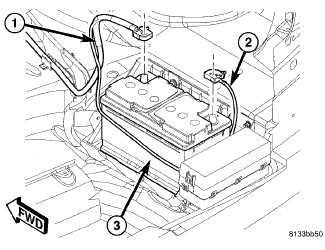

1. Disconnect and isolate the battery negative cable (2).





2. Open the positive battery cable nut cover to expose nut.
3. Remove the battery cable nut and the battery cable from the Totally Integrated Power Module (TIPM).

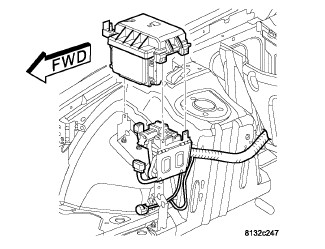

4. Disengage the outboard retaining clip, and rotate the TIPM to access wire harness connectors.

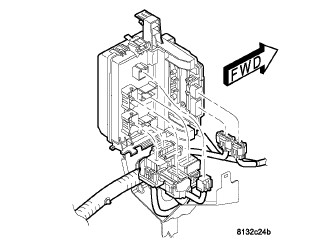

5. Disconnect the wire harness connectors from TIPM.
6. Disengage the two inboard retaining clips.





7. Remove the TIPM from vehicle.
