42RLE Automatic Transmission






42RLE AUTOMATIC TRANSMISSION

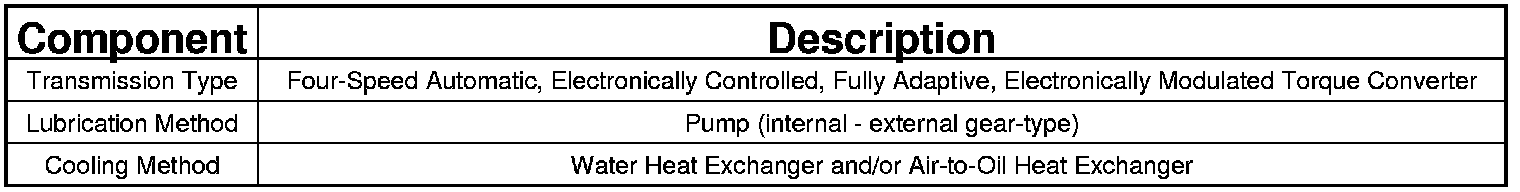

GENERAL SPECIFICATIONS

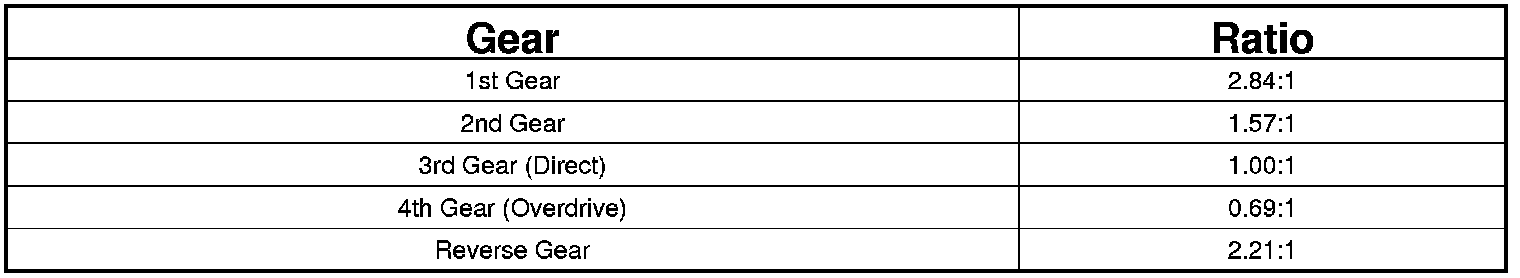

GEAR RATIOS

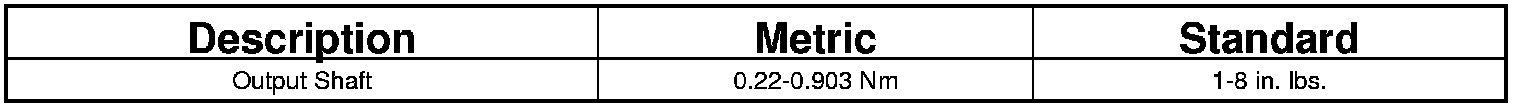

BEARING PRELOAD (Drag Torque)

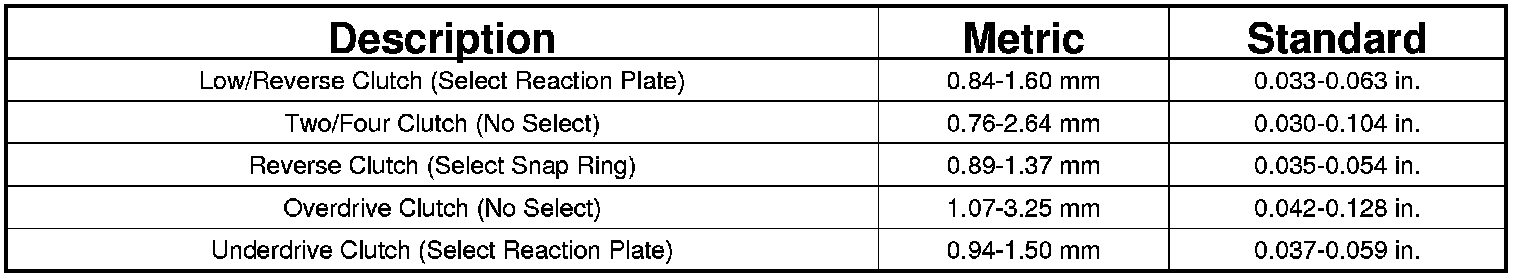

CLUTCH PACK

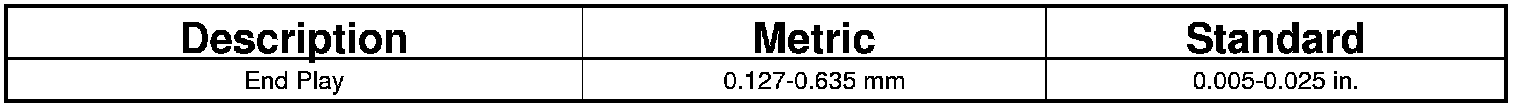

INPUT SHAFT

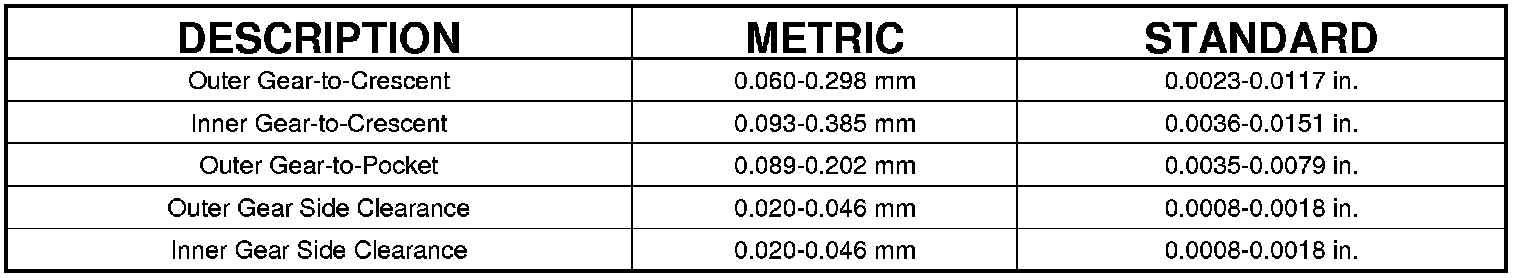

OIL PUMP CLEARANCES

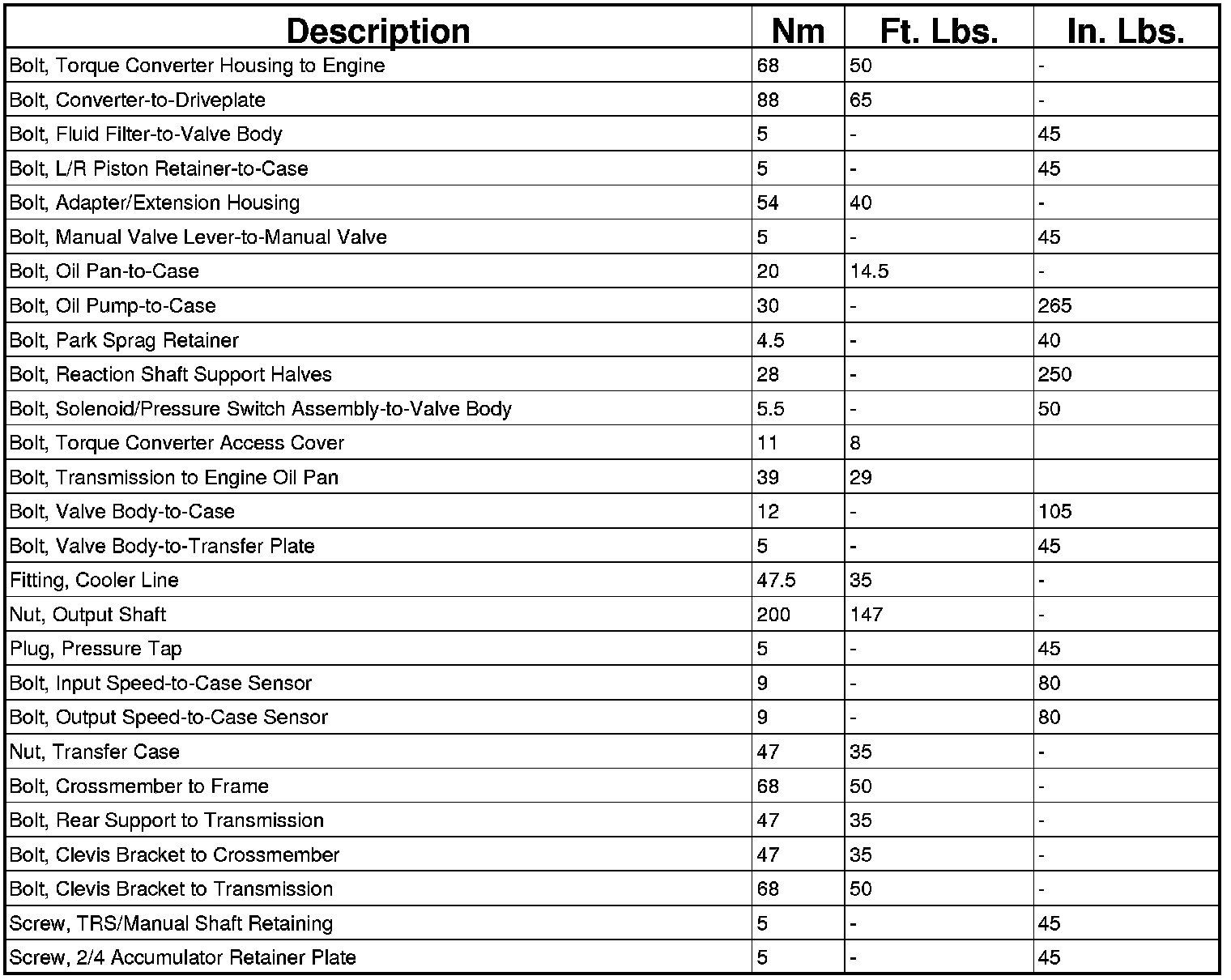

TORQUE SPECIFICATIONS
