Cruise Control Module






SPECIFICATIONS

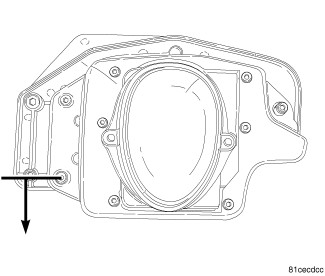

SENSOR HEIGHT: measure from the ground to the center of the ballscrew shown on the adaptive cruise control module.

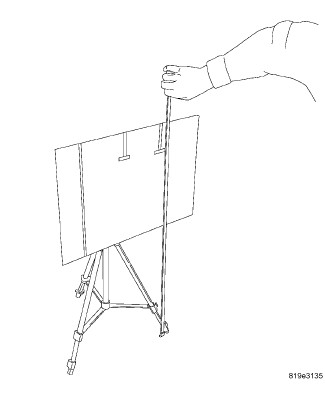

BOARD HEIGHT: measure from the ground to the top of the Alignment Board.

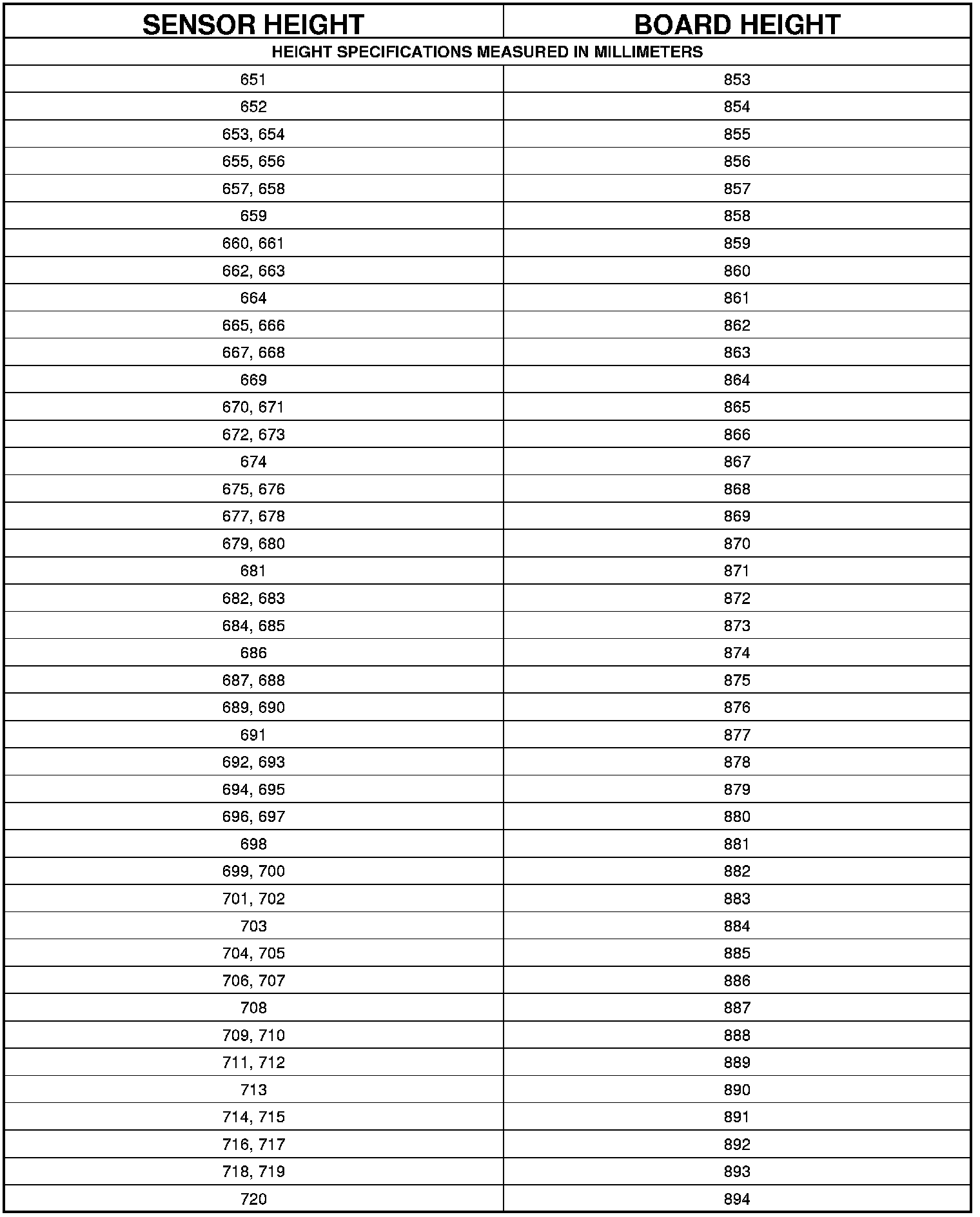

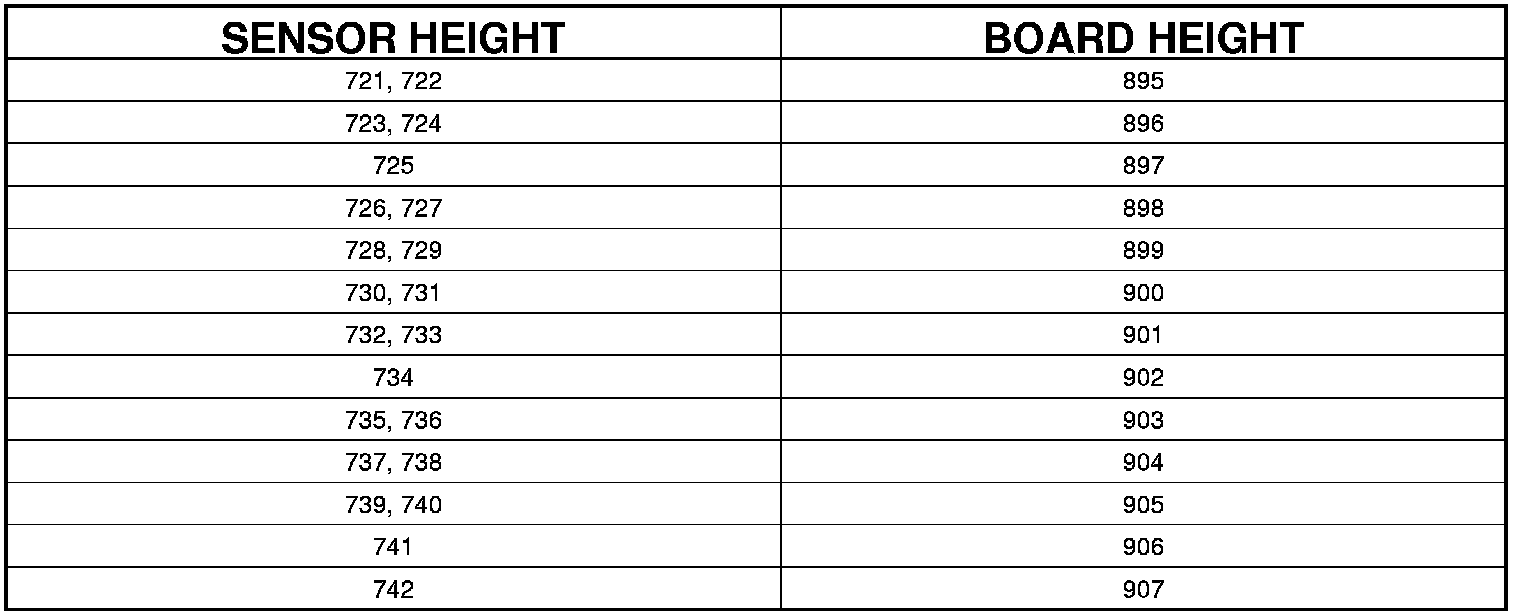

ADAPTIVE CRUISE CONTROL AIMING CHART
