Chrysler
>>
2009
>>
PT Cruiser Base, Automatic
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Occupant Classification Module (OCM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B212C-Ignition Run/Start Input Circuit Open
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

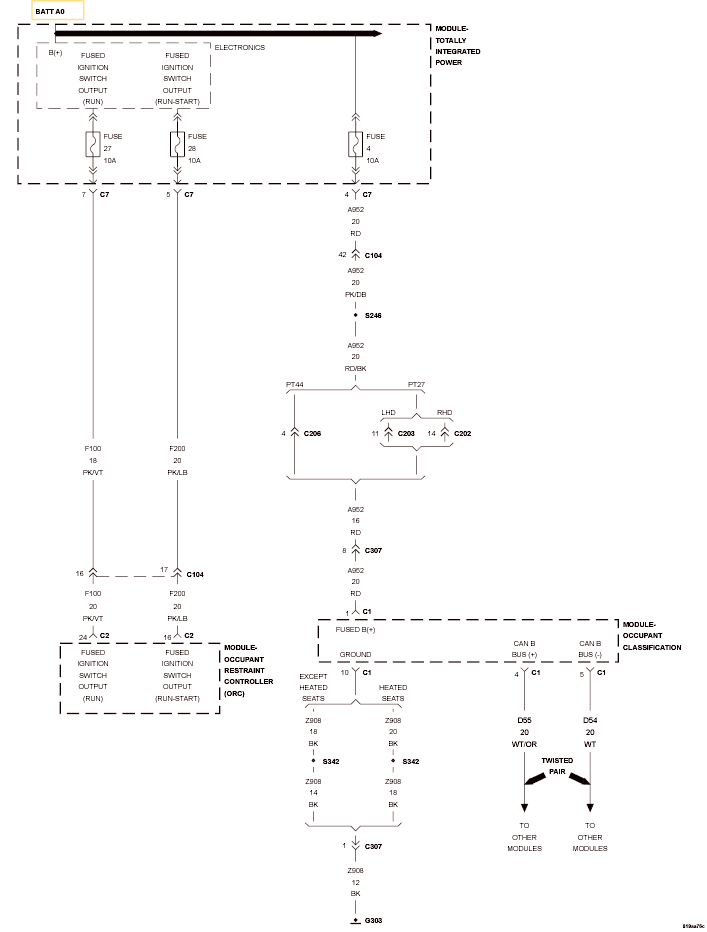

Fig 1: Fused Ignition Switch Output Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
