Retractor, Seat Belt, Rear: Installation: Installation

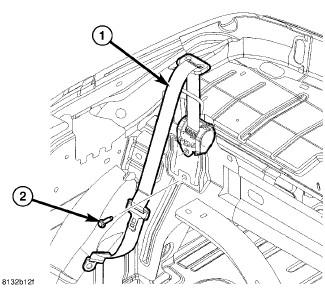

Fig 1: SEAT BELT AND RETRACTOR - REMOVE/INSTALL

Courtesy of CHRYSLER LLC

Position seat belt AND retractor into vehicle.
Install the one retaining bolt to the seat belt retractor (2). Torque bolt to 40 N.m (30 ft. lbs.).

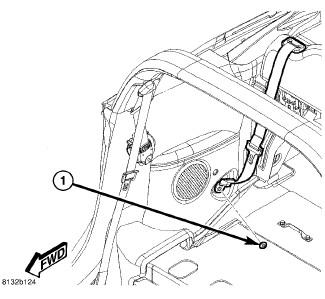

Fig 2: SEAT BELT ANCHOR NUT - REMOVE/INSTALL
Courtesy of CHRYSLER LLC
Feed the seat belt webbing through the top of the rear seat upper bolster.
Install the four bolts to the rear seat upper bolster.
Install the Lower Quarter Trim Panel.
Install the lower seat belt anchor nut (1). Torque bolt to 40 N.m (30 ft. lbs.).

Place rear seat belt retractor into position.
Install bolt attaching retractor. Tighten the retractor belt bolt to 40 N.m (30 ft. lbs.) torque.
Feed seat belt and hardware through trim opening.
Install lower seat belt anchor bolt. Tighten to 40 N.m (30 ft. lbs.).
Install trim panel. Refer to Body/Interior/PANEL, Quarter Trim - Installation .
Install upper and lower trim bezels.
Install turning loop bolts.
Install turning loop cover.
