Sentry Key Immobilizer Module (SKREEM) - Installation

INSTALLATION





When a PCM and the SKREEM/WCM are replaced at the same time, perform the following steps in order .

- Program the new PCM.
- Program the new SKREEM/WCM.
- Replace all ignition keys and program them to the new SKREEM/WCM.

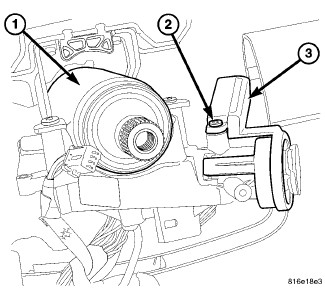

1. Position the SKREEM/WCM (3) on the ignition lock housing and install the retaining screw (2).

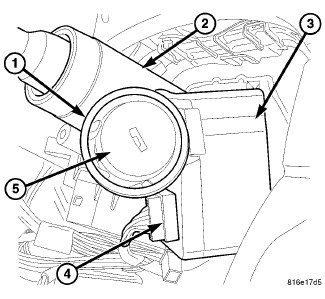

2. Connect the SKREEM/WCM electrical connector (4).
3. Install the right multi-function switch Right Multifunction Switch - Installation.
4. Install the upper and lower steering column shrouds Steering Column Shroud - Installation and Steering Column Shroud - Installation.

NOTE: On vehicles equipped with the optional Sentry Key Immobilizer System (SKIS), when the SKREEM is replaced with a new unit, a diagnostic scan tool MUST be used to initialize the new SKREEM and to program at least two Sentry Key transponders before the vehicle can be operated . [1][2]Sentry Key Immobilizer System (SKIS) Initialization

5. Connect the battery negative cable.
