Powertrain Control Module C4 (NGC) (Engine) 38 Way

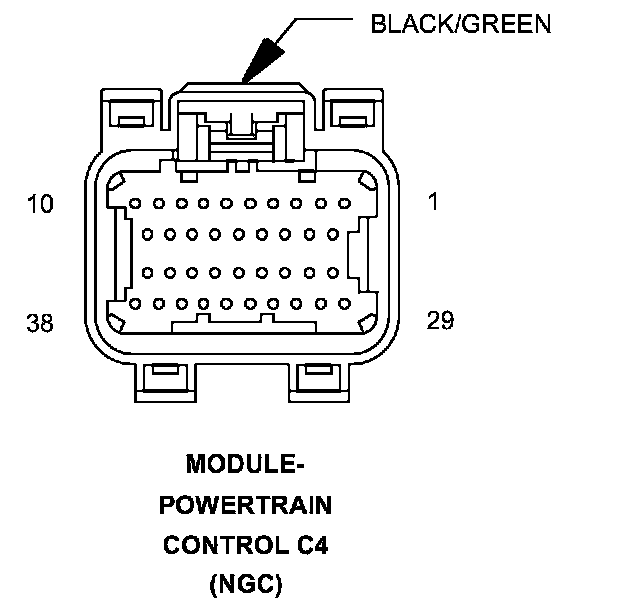

Connector C4 (NGC) - (ENGINE) 38 WAY

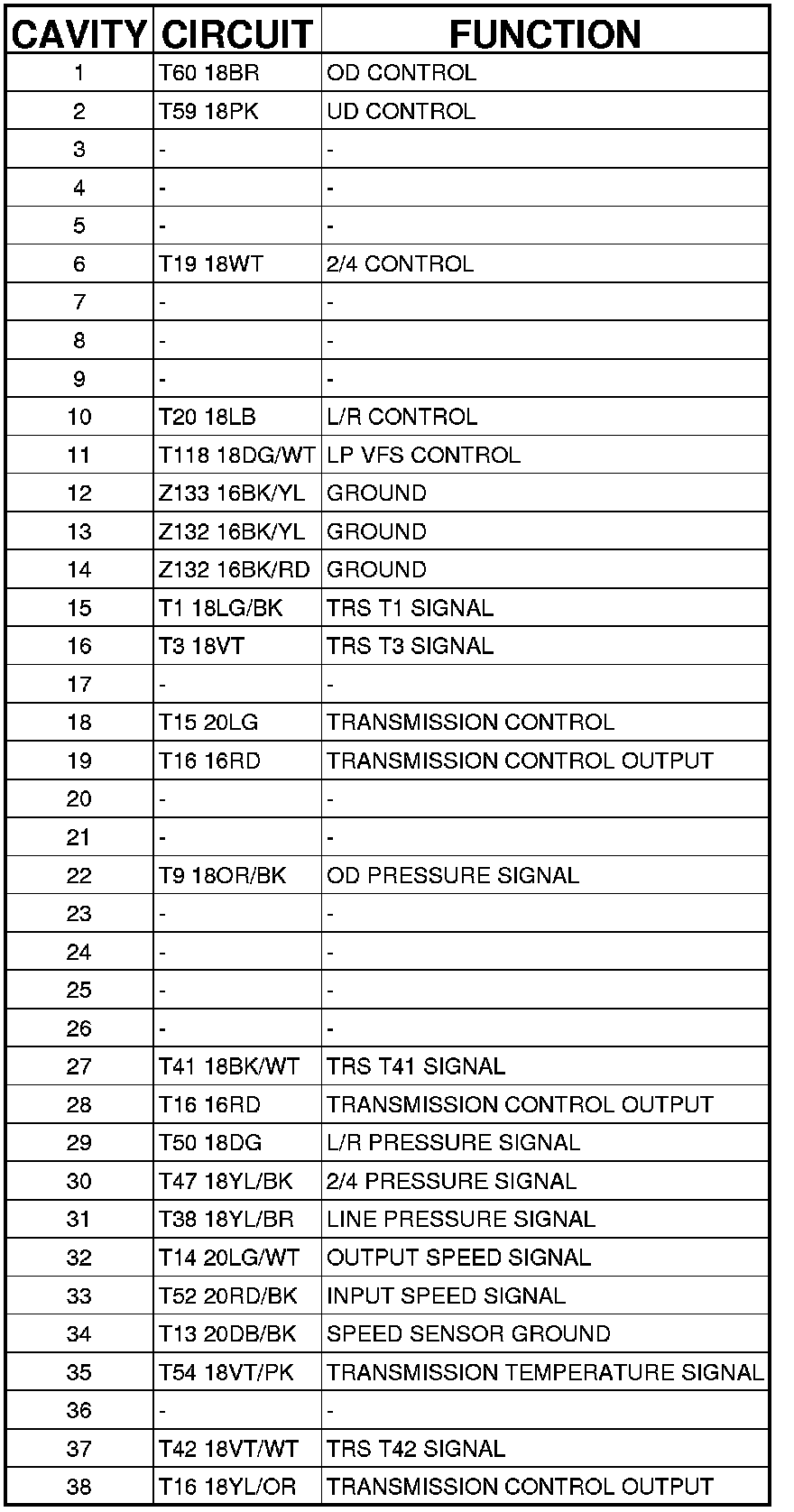

MODULE-POWERTRAIN CONTROL (NGC) - (ENGINE) 38 WAY
