Radiator Cooling Fan Control Module

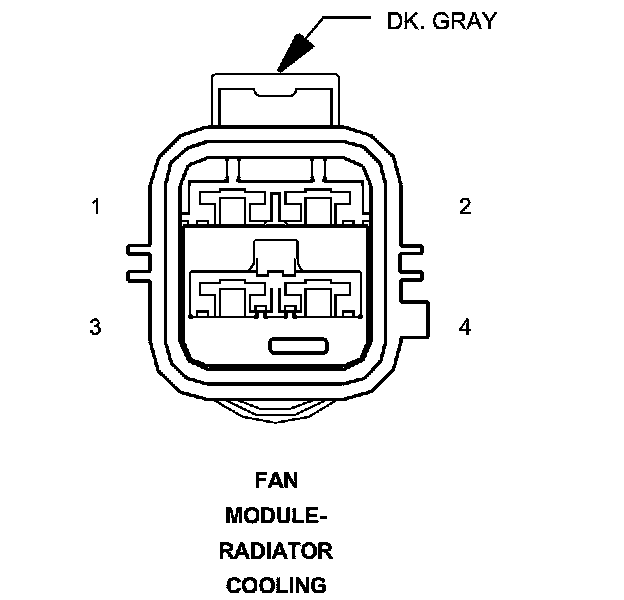

Connector - (HEADLAMP AND DASH) 4 WAY

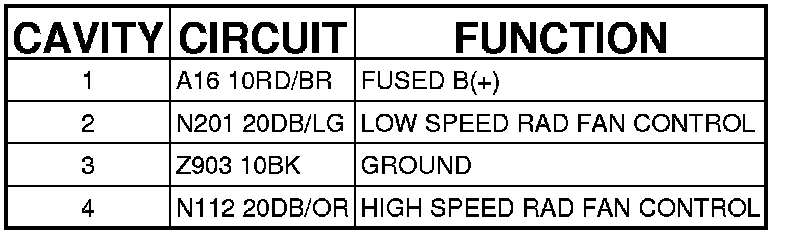

FAN MODULE-RADIATOR COOLING - (HEADLAMP AND DASH) 4 WAY
