Fuel Pump Module - Installation

INSTALLATION





1. Wipe seal area of tank clean. Place a new seal between the tank threads and the pump module opening.






NOTE: The pump has to properly located to the tank for the fuel gauge to work properly.

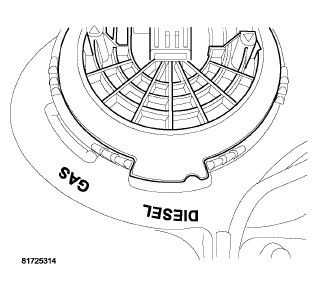

2. Position fuel pump module in tank. Make sure the alignment tab line up on the fuel tank and pump module for Gas or Diesel fuel tanks.

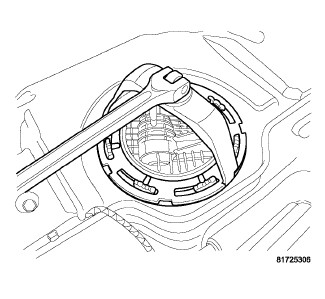

3. While holding the pump module in position, install lock ring and use special tool #9340 to tighten lock ring.
4. Install fuel tank, Fuel Tank - Installation.
5. Lower vehicle.
6. Install the negative battery cable.
7. Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
8. Fill fuel tank with clean fuel. Use the Scan Tool to pressurize the system and check for leaks.
