Removal

REMOVAL

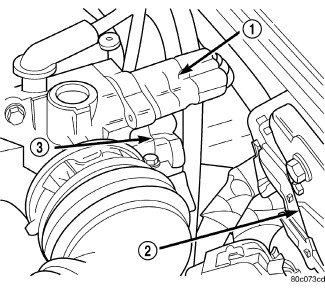

The throttle position sensor attaches to the side of the throttle body (1).










1. Remove the air cleaner lid and makeup air hose. Loosen the clamp and relocate assembly.
2. Remove the negative battery cable.
3. Disconnect electrical connector from the throttle position sensor (2).
4. Remove throttle position sensor mounting screws.
5. Remove throttle position sensor.
