Ignition Coil






IGNITION RESISTANCE

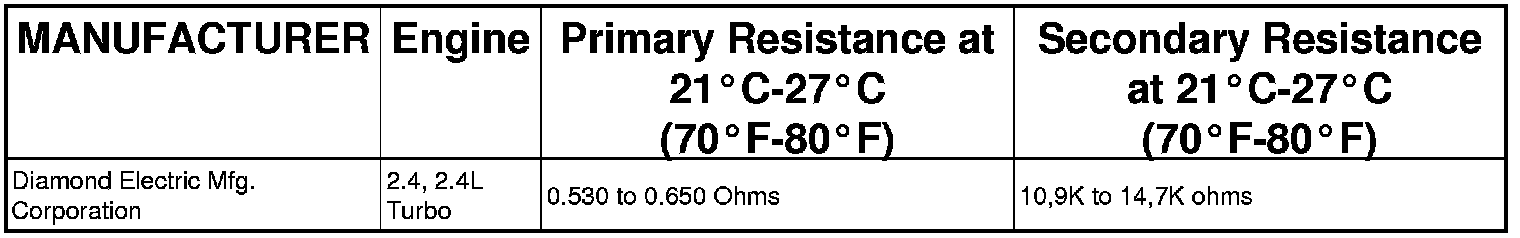

IGNITION COIL RESISTANCE

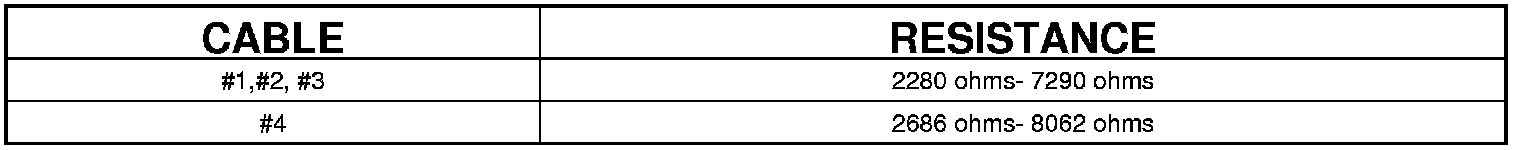

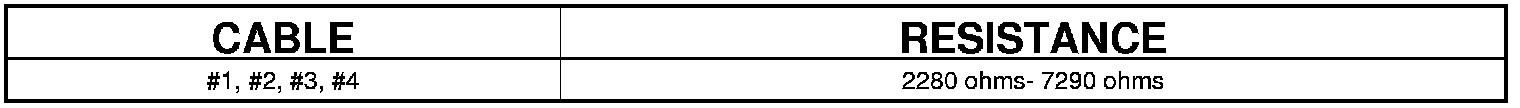

SPARK PLUG CABLE RESISTANCE

2.4L






2.4L Turbo
