System Specifications






SPECIFICATIONS

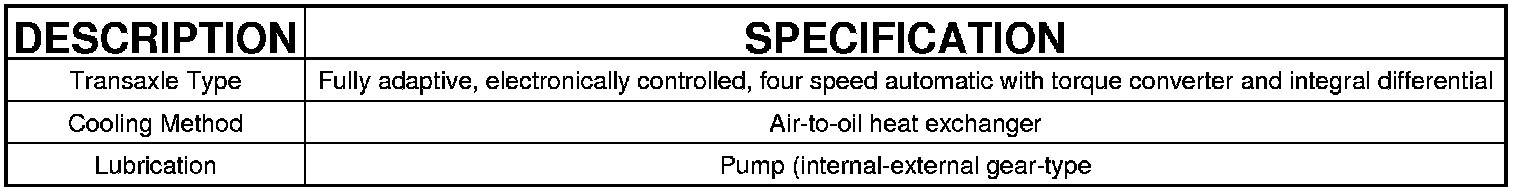

GENERAL SPECIFICATIONS

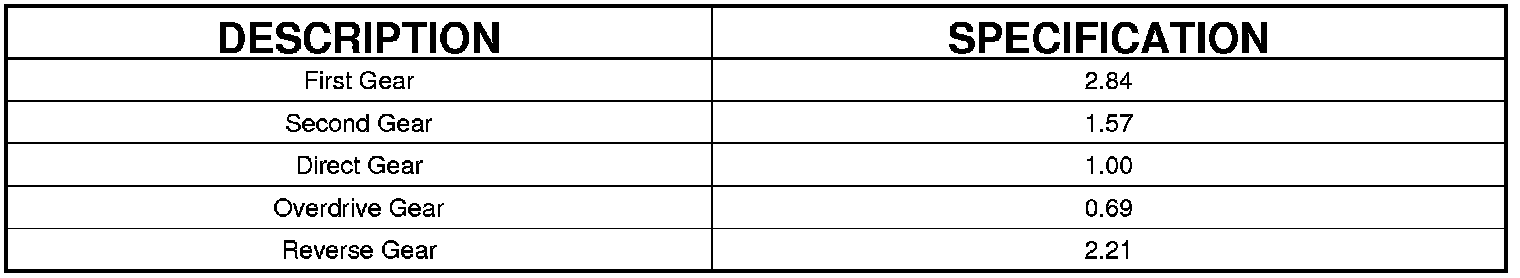

GEAR RATIOS

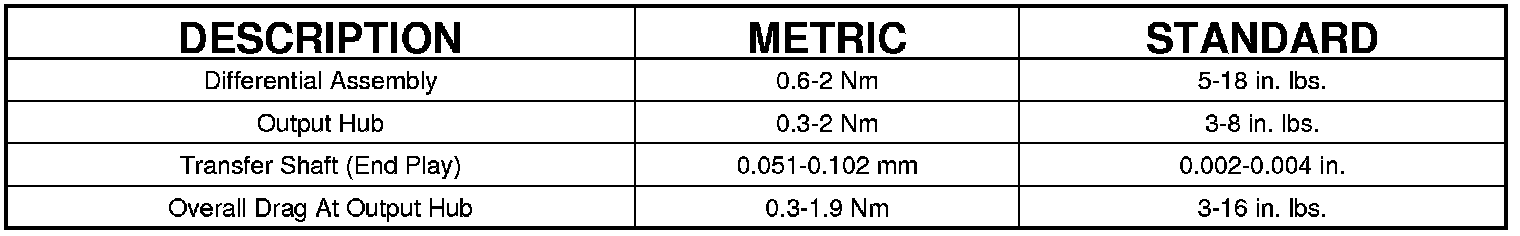

BEARING SETTINGS (END PLAY AND TURNING TORQUE)

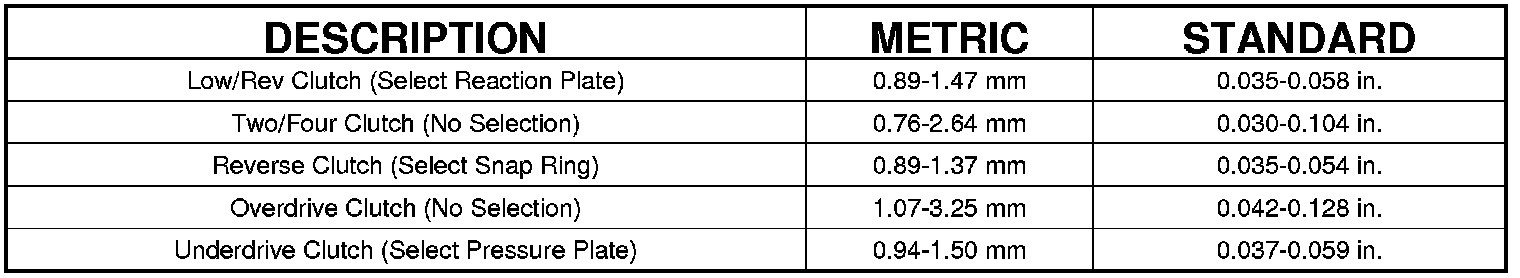

CLUTCH CLEARANCES

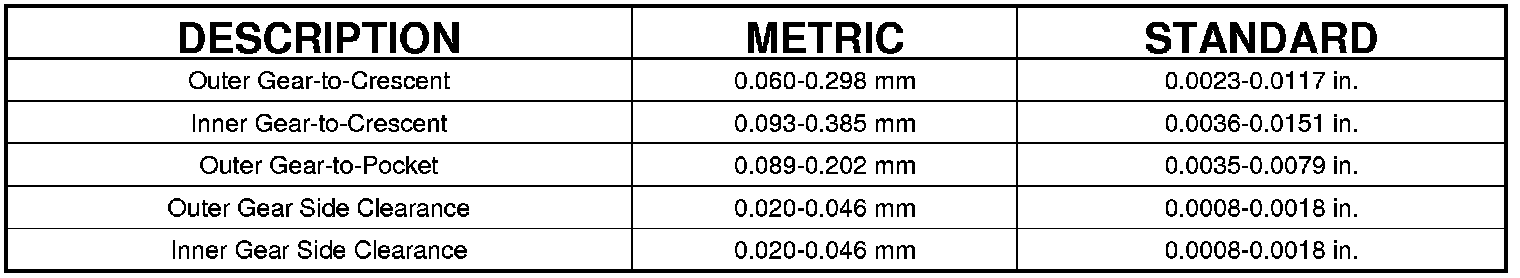

OIL PUMP CLEARANCES

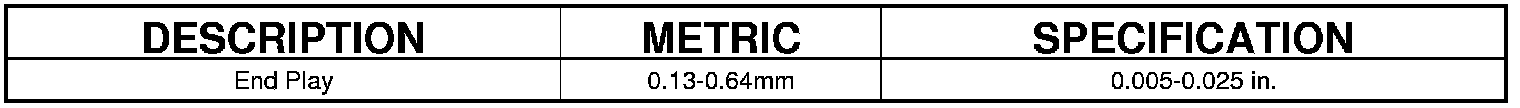

INPUT SHAFT

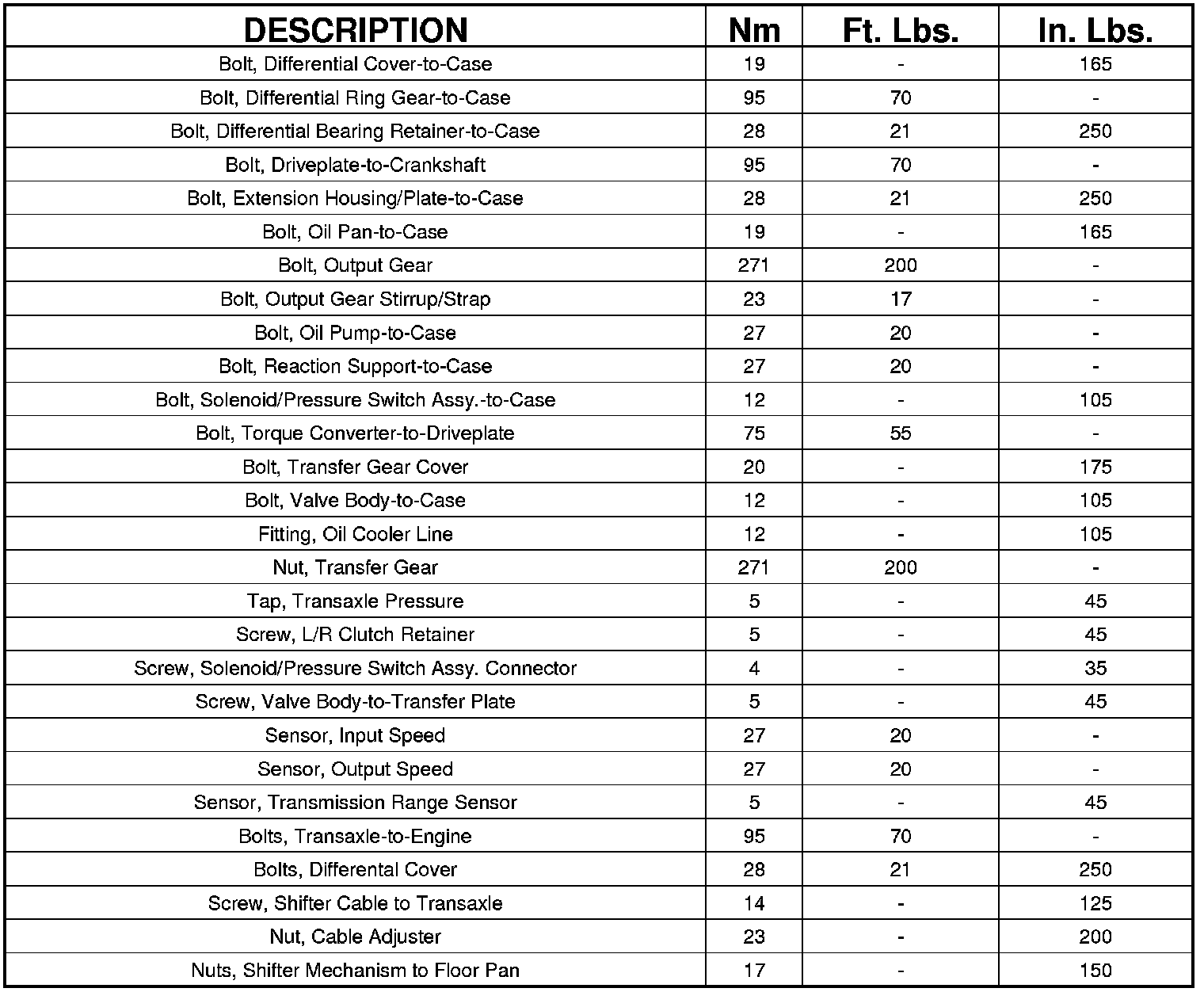

TORQUE
