2.7L 1st

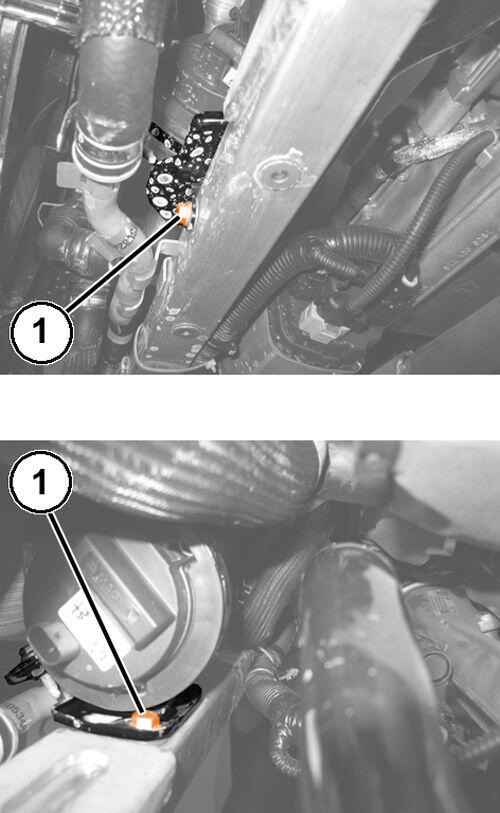

Fig 1: 1st Ignition Capacitor - 2.7L
GC0080069Courtesy of CHRYSLER LLC
  1. Install ignition coil capacitor and nut.
  2. Tighten nut to 10 N.m (88.5 in. lbs.).
  3. Attach electrical connector to capacitor.
  4. Connect negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
