COIL, Ignition: Installation: 3.5L

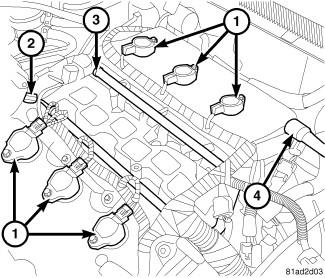

Fig 1: Ignition Coils And Fuel Rail
GC0080073Courtesy of CHRYSLER LLC
  1. Install ignition coil (1).
    Fig 2: Ignition Coils
    GC0080074Courtesy of CHRYSLER LLC
  2. Install engine cover studs (1) in the two outside ignition coils on the front of the engine. Install bolts on the other ignition coils.
  3. Tighten studs and bolts to 8 N.m (71 in. lbs.).
    Fig 3: Coil And Fuel Injector Connectors
    GC0080077Courtesy of CHRYSLER LLC
  4. Connect electrical connector and lock (2).
  5. Install intake manifold. Refer to INSTALLATION .
  6. Connect negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
  7. Install engine cover.
