Spark Plug: Installation: 2.7L
CAUTION:
Handle the spark plugs with care. Do not drop or force the spark plugs into the wells, damage to the electrodes and/or porcelain body may occur. Always start each spark plug by hand in order to avoid cross-threading the spark plug in the cylinder head.
Always tighten spark plugs to the specified torque. Too much or not enough torque will cause damage to the cylinder head and/or spark plug and may lead to poor engine performance.
Always tighten spark plugs to the specified torque. Too much or not enough torque will cause damage to the cylinder head and/or spark plug and may lead to poor engine performance.
- Install each spark plug to the cylinder head. Tighten spark plugs to 17 N.m (13 ft. lbs.).
- Align ignition coil with top of spark plug.

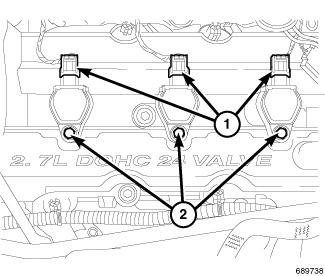

- Twist and push down ignition coil assembly onto spark plug and valve cover. Install mounting bolt (2) and tighten to 7.5 N.m (65 in. lbs.).
- Connect electrical connector (1) to ignition coil.
- Install upper intake manifold. Refer to INSTALLATION .
- Connect negative battery cable.
