Compressor Control Valve Assembly

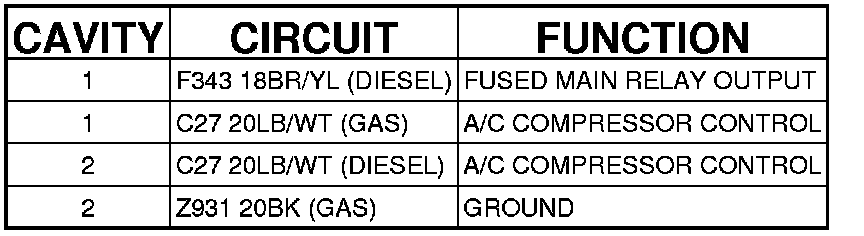

Connector - (ENGINE/POWERTRAIN) 2 WAY

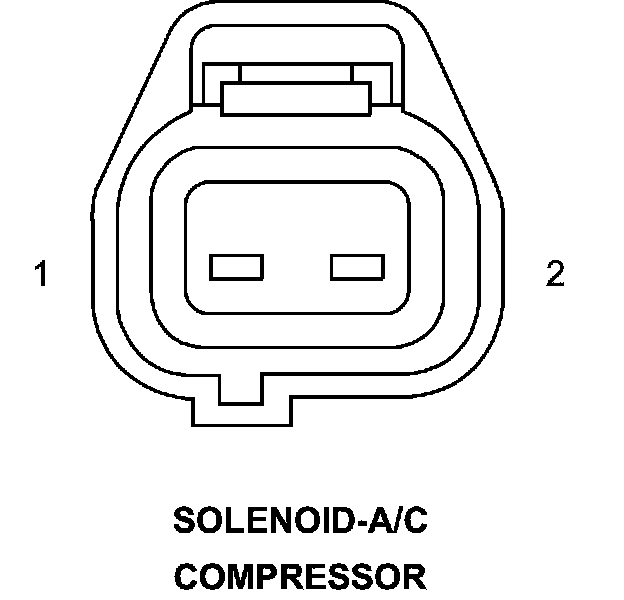

SOLENOID-A/C COMPRESSOR - (ENGINE/POWERTRAIN) 2 WAY
