Control Module HVAC






Connector (ATC) - (INSTRUMENT PANEL) 4 WAY

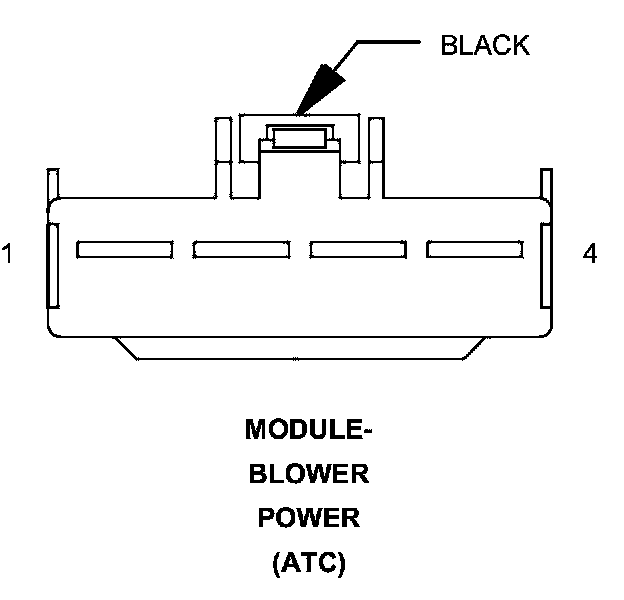

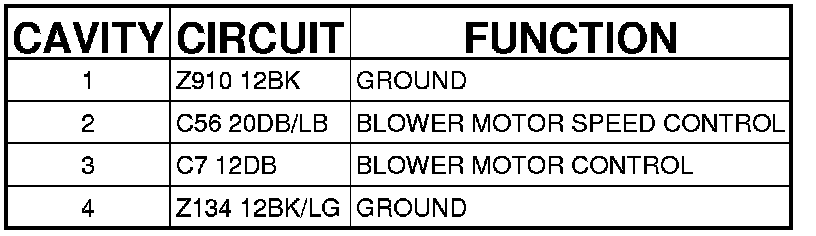

MODULE-BLOWER POWER (ATC) - (INSTRUMENT PANEL) 4 WAY
