Power Top Module C2 (JS27) (Body) 14 Way

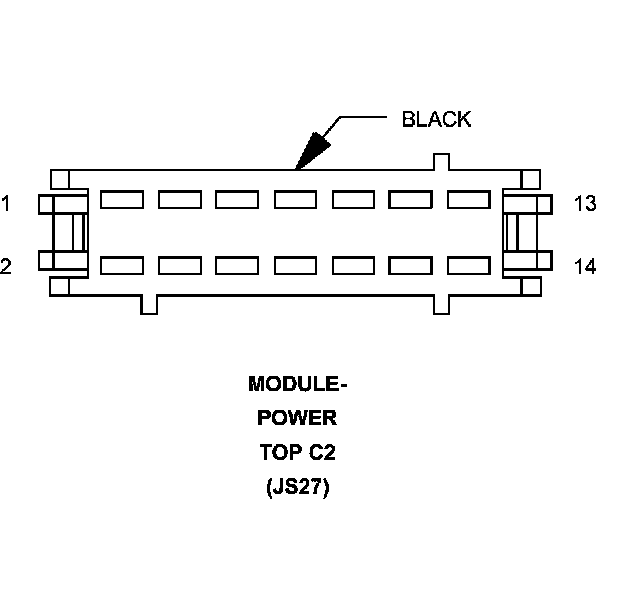

Connector C2 (JS27) - (BODY) 14 WAY

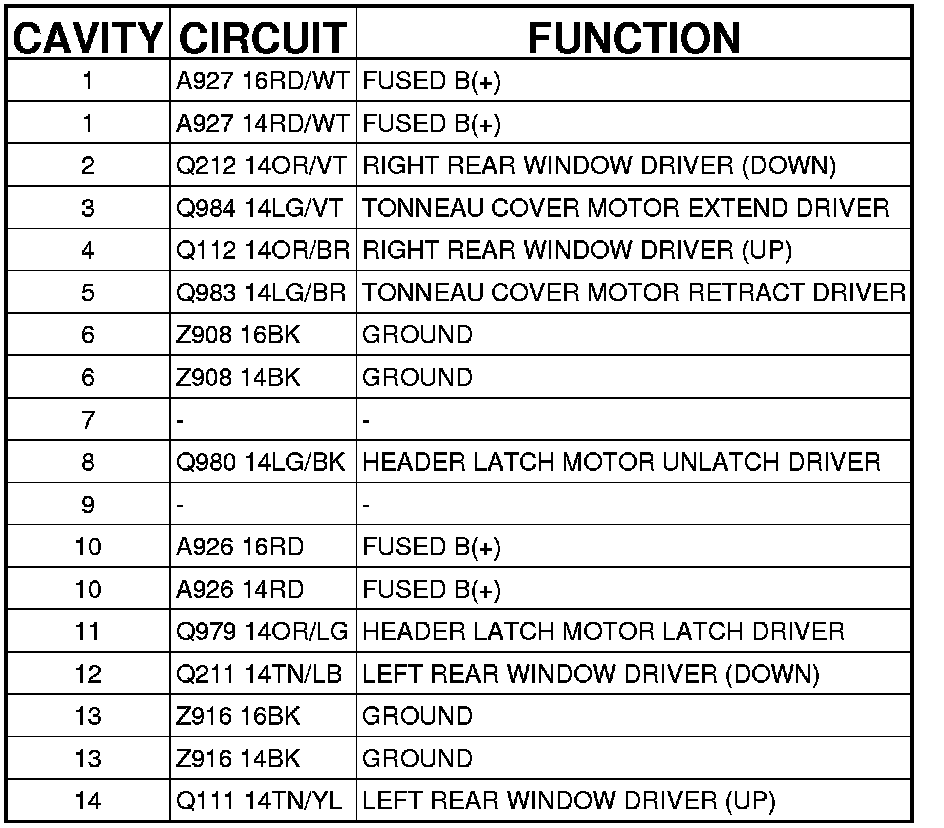

MODULE-POWER TOP (JS27) - (BODY) 14 WAY
