Convertible Top Switch

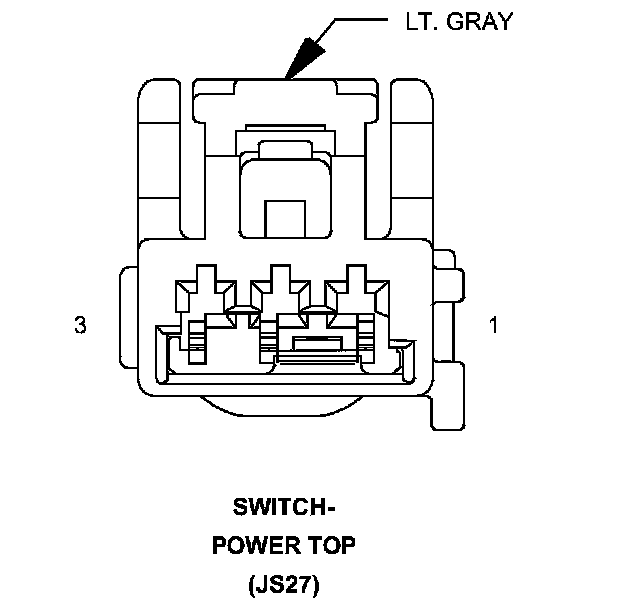

Connector (JS27) - (INSTRUMENT PANEL) 3 WAY

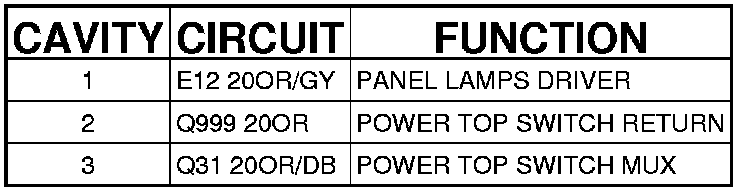

SWITCH-POWER TOP (JS27) - (INSTRUMENT PANEL) 3 WAY
