Electronic Brake Control Module

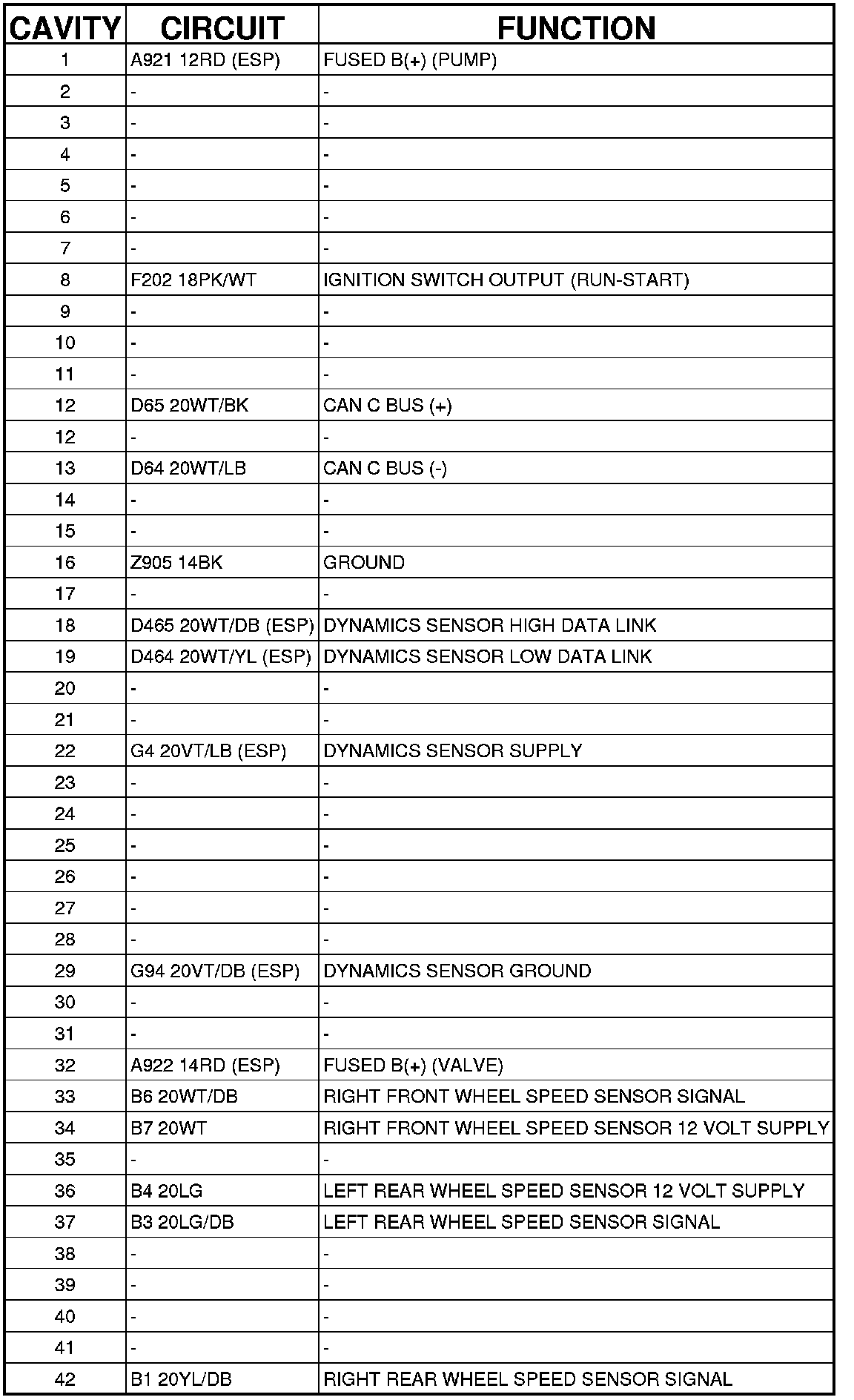

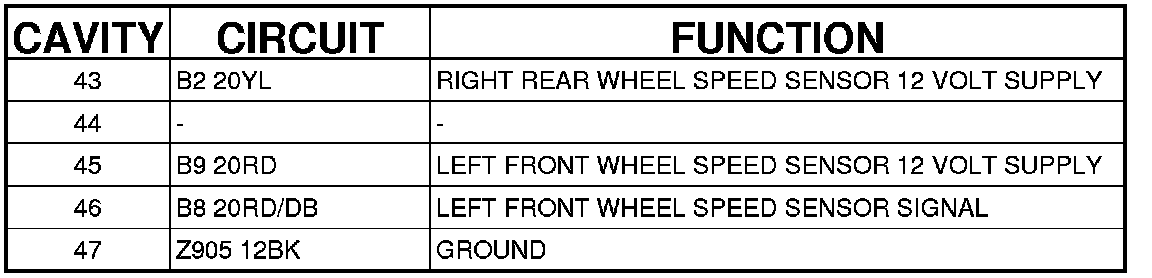

Connector - (HEADLAMP AND DASH) 47 WAY

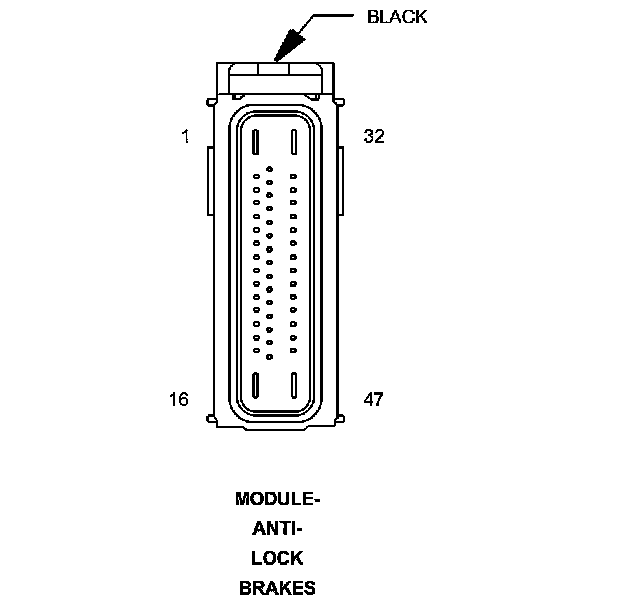

MODULE-ANTI-LOCK BRAKES - (HEADLAMP AND DASH) 47 WAY
