Powertrain Control Module C2 (Engine) 96 Way

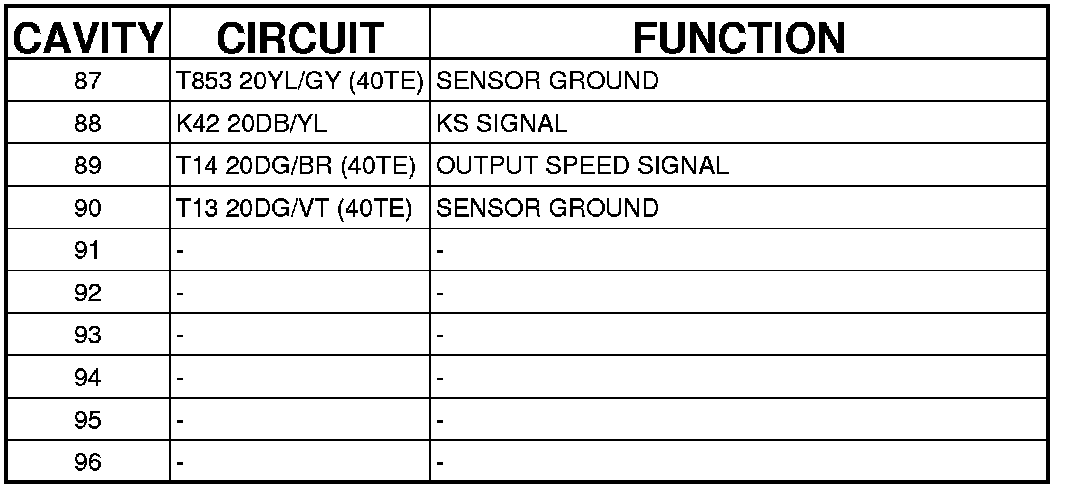

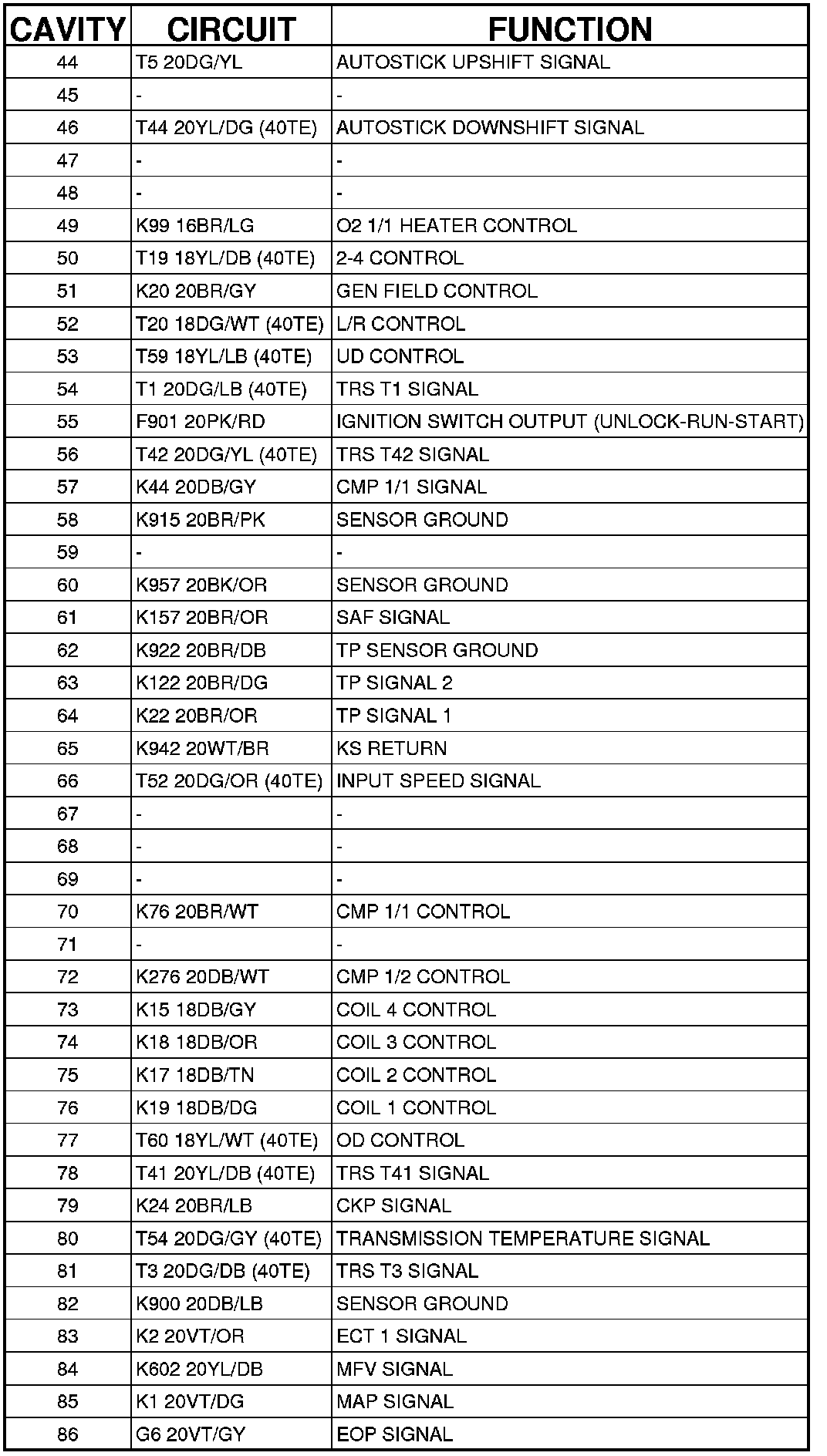

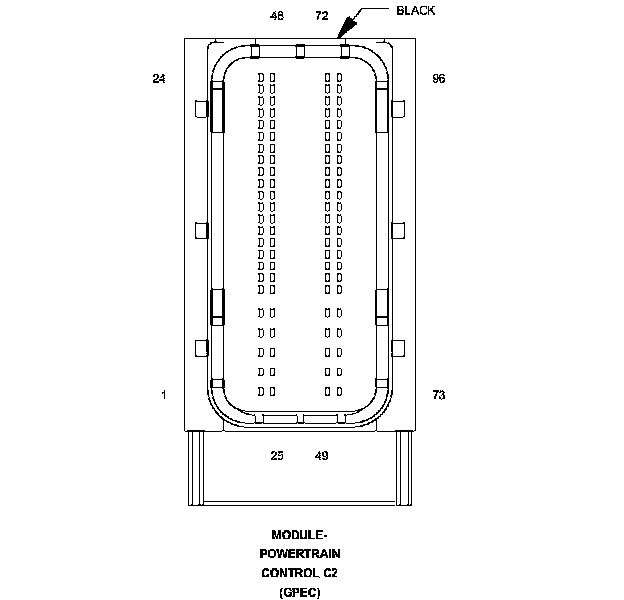

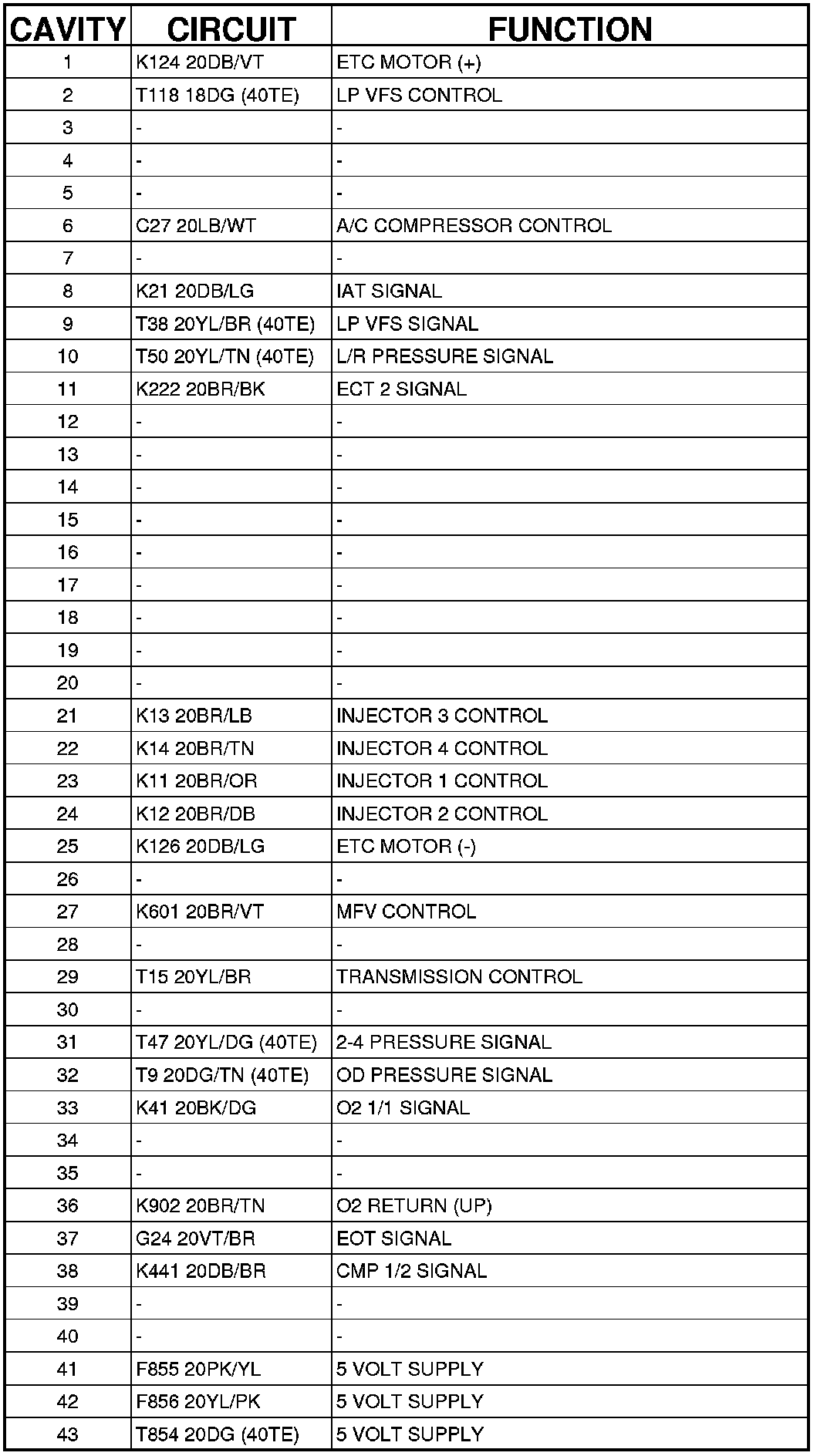

Connector C2 (GPEC) - (ENGINE) 96 WAY
MODULE-POWERTRAIN CONTROL (GPEC) - (ENGINE) 96 WAY
