Hood Sensor/Switch (For Alarm)

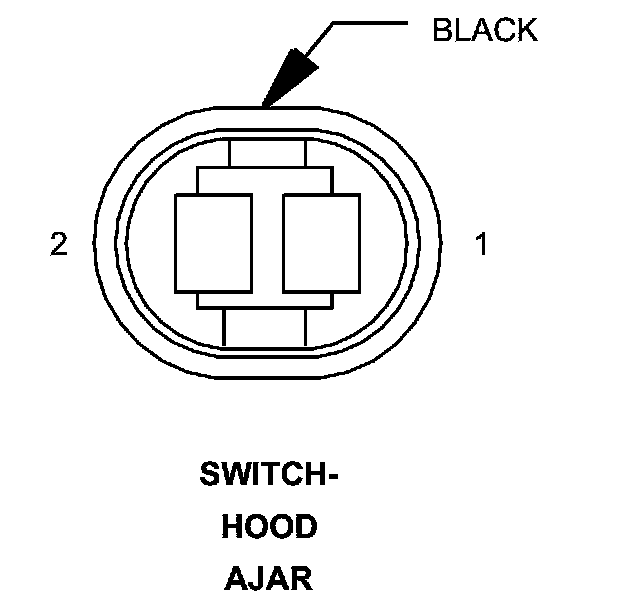

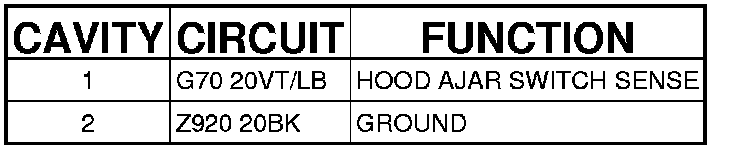

Connector - (FRONT END MODULE) 2 WAY
SWITCH-HOOD AJAR - (FRONT END MODULE) 2 WAY
