Left Front Impact Sensor (Front End Module) 2 Way

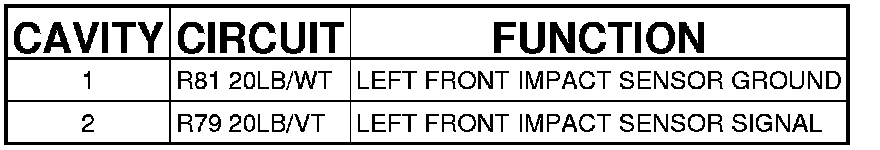

Connector - (FRONT END MODULE) 2 WAY

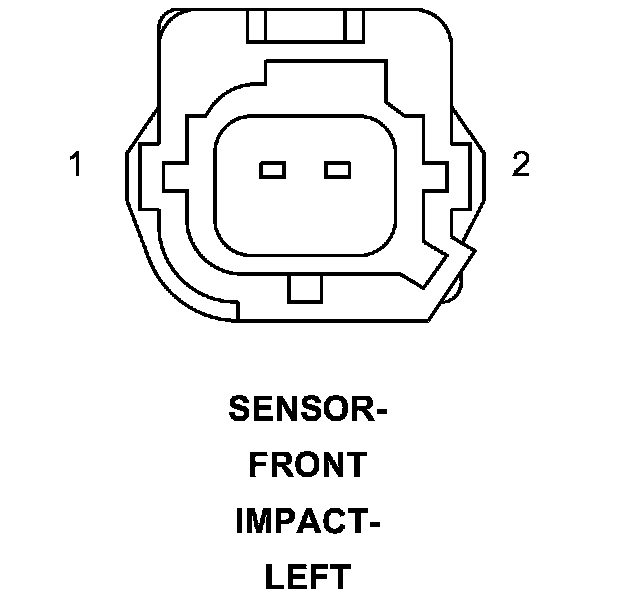

SENSOR-FRONT IMPACT-LEFT - (FRONT END MODULE) 2 WAY
