Power Mirror Switch

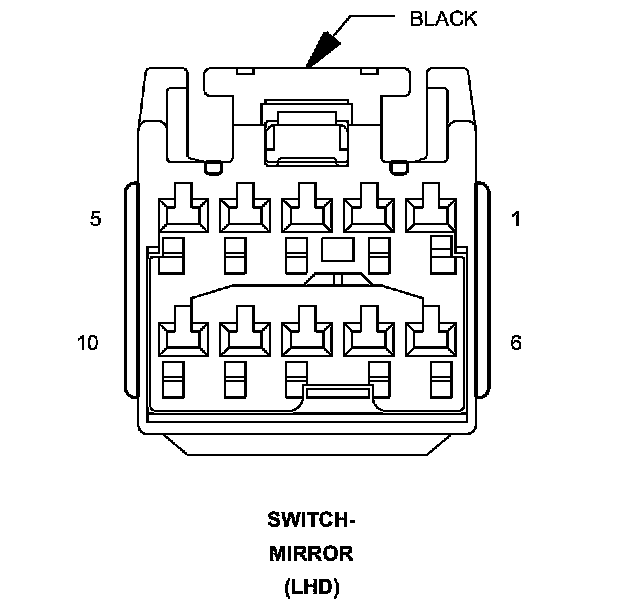

Connector (LHD) - (DRIVER DOOR) 10 WAY

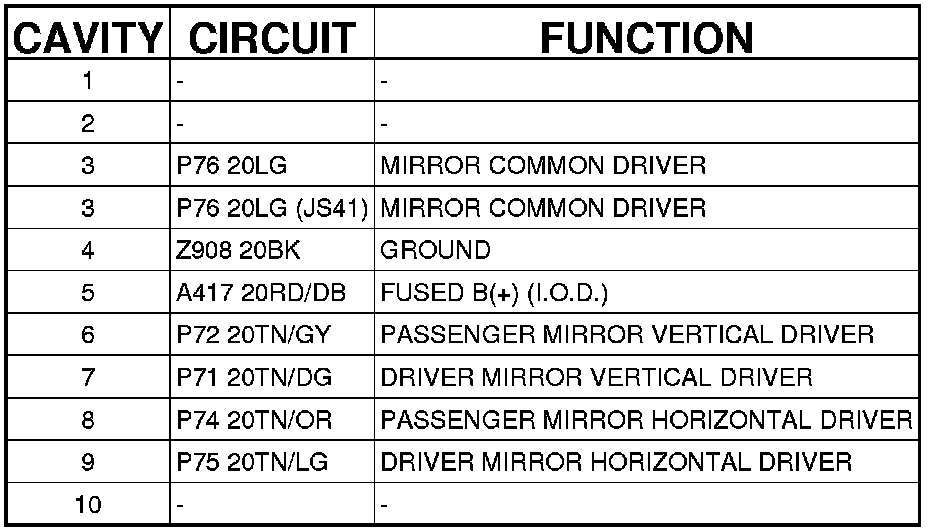

SWITCH-MIRROR (LHD) - (DRIVER DOOR) 10 WAY
