Totally Integrated Power Module C3 (Headlamp And Dash) 16 Way

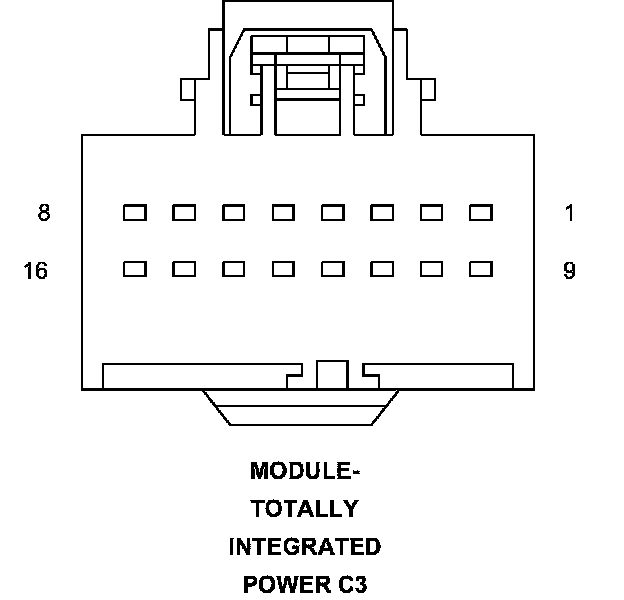

Connector C3 - (HEADLAMP AND DASH) 16 WAY

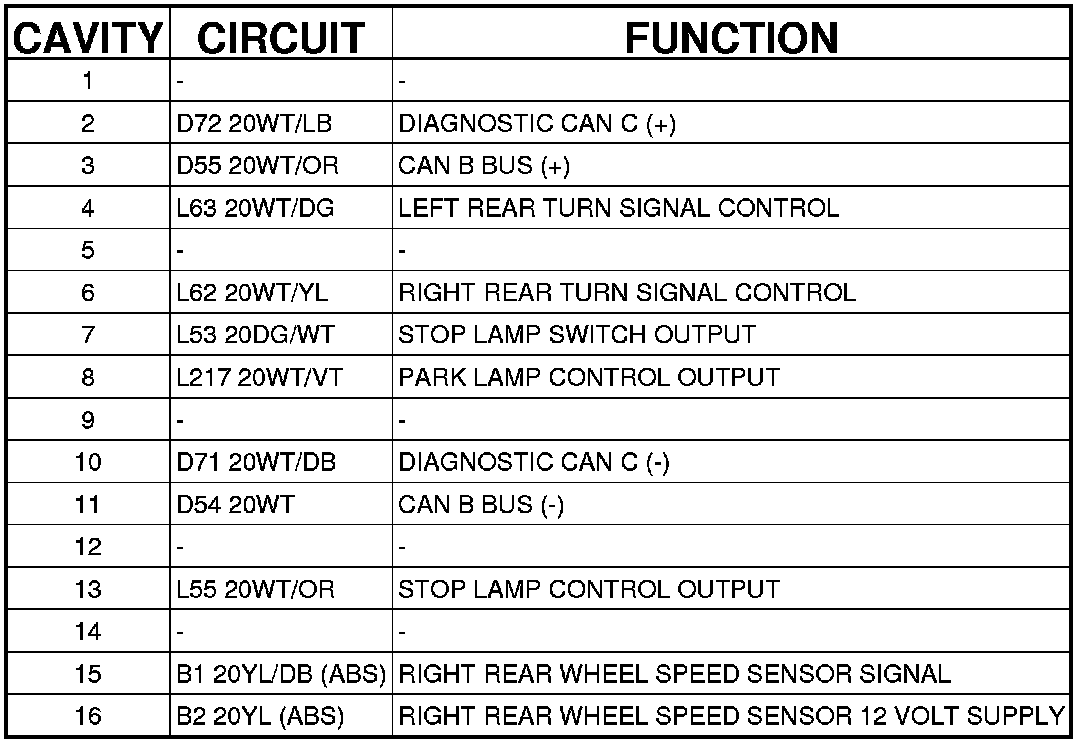

MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 16 WAY
