Totally Integrated Power Module C6 (Headlamp And Dash) 13 Way

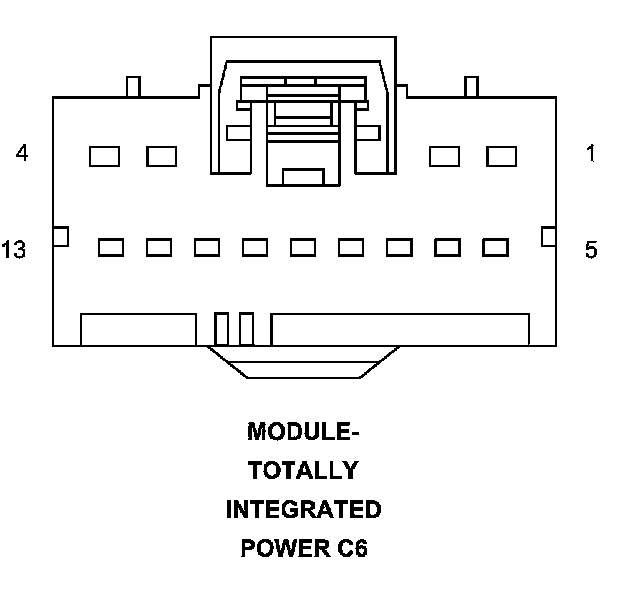

Connector C6 - (HEADLAMP AND DASH) 13 WAY

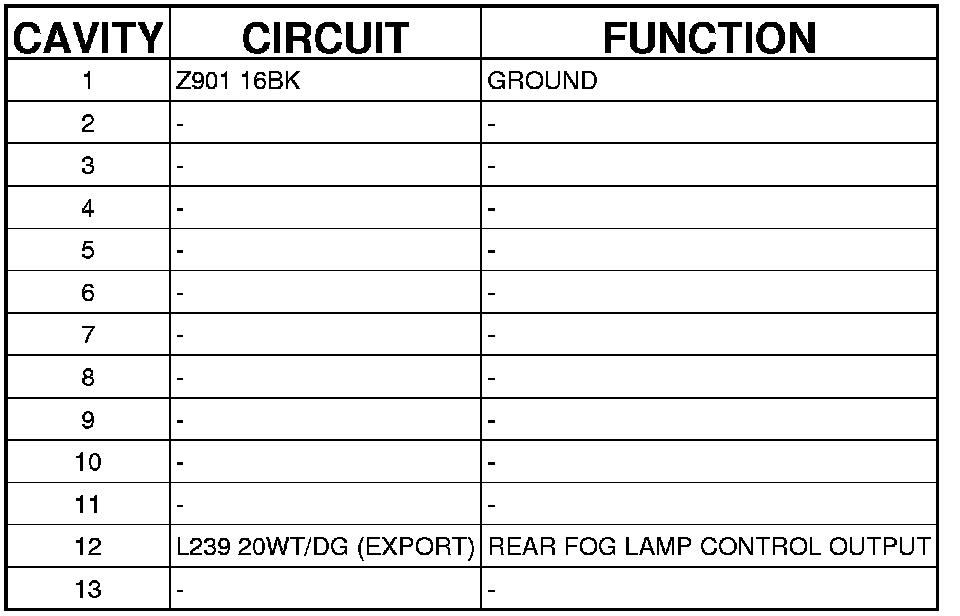

MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 13 WAY
